TLP627-2 Datasheet | Toshiba

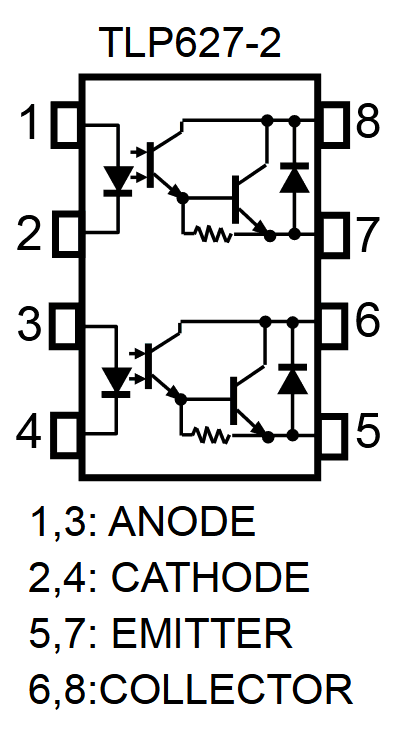

TLP627,TLP627-2,TLP627-4 TOSHIBA Photocoupler IRED & Photo-Transistor TLP627, TLP627-2, TLP627-4 Programmable Controllers DC-output Module Telemunication Unit: mm TLP627 The TOSHIBA TLP627,-2 and -4 consist of an infrared emitting diode optically coupled to a Darlington connected phototransistor which has an integral base-emitter resistor to optimize switching speed and elevated temperature characteristics. The TLP627-2 offers two isolated channels in eight lead plastic DIP, while the TLP627-4 provide four isolated channels per package. - Collector-Emitter Voltage - Current Transfer Ratio - UL-recognized - c UL-recognized - VDE-approved : 300 V (min) : 1000 % (min) : UL 1577, File No.E67349 : CSA ponent Acceptance Service No.5A File No.E67349 : EN 60747-5-5 (Note 1) TOSHIBA 11-5B2 Weight: 0.26 g (typ.) Note 1: When a VDE approved type is needed, please designate the Option(D4). TOSHIBA 11-10C4 Weight: 0.54 g (typ.) TLP627-4 © 2019 Toshiba Electronic Devices & Storage Corporation TOSHIBA 11-20A3 Weight: 1.1 g (typ.) Start of mercial production 1984-08...
