TLP627,TLP627-2,TLP627-4
TOSHIBA Photocoupler IRED & Photo-Transistor
TLP627, TLP627-2, TLP627-4
Programmable Controllers DC-output Module Telecommunication
Unit: mm TLP627

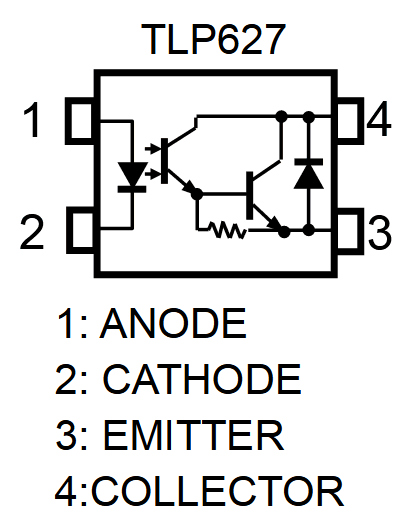

The TOSHIBA TLP627,-2 and -4 consist of an infrared emitting diode optically coupled to a Darlington connected phototransistor which has an integral base-emitter resistor to optimize switching speed and elevated temperature characteristics.
The TLP627-2 offers two isolated channels in eight lead plastic DIP, while the TLP627-4 provide four isolated channels per package.
Collector-Emitter Voltage Current Transfer Ratio UL-recognized cUL-recognized
VDE-approved
: 300 V (min) : 1000 % (min) : UL 1577, File No.E67349
: CSA Component Acceptance Service No.5A File No.
