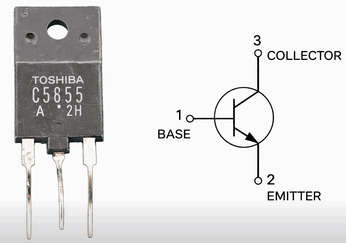

2SC5855 Datasheet | Toshiba

TOSHIBA TRANSISTOR SILICON NPN TRIPLE DIFFUSED MESA TYPE HORIZONTAL DEFLECTION OUTPUT FOR SUPER HIGH RESOLUTION DISPLAY, COLOR TV, DIGITAL TV HIGH SPEED SWITCHING APPLICATIONS High Voltage Low Saturation Voltage High Speed : VCBO = 1500 V : VCE (sat) = 3 V (max) : tf(2) = 0.1 µs (typ.) Unit: mm MAXIMUM RATINGS (Tc = 25°C) CHARACTERISTIC Collector- Base Voltage Collector- Emitter Voltage Emitter- Base Voltage Collector Current Base Current Collector Power Dissipation Junction Temperature Storage Temperature Range DC Pulse SYMBOL VCBO VCEO VEBO IC ICP IB PC Tj Tstg RATING 1500 700 5 10 20 5 50 150 - 55~150 UNIT V V V A A W °C °C JEDEC JEITA TOSHIBA ― ― 2-16E3A Weight: 5.5 g (typ.) ELECTRICAL CHARACTERISTICS (Tc = 25°C) CHARACTERISTIC Collector Cut- off Current Emitter Cut- off Current Collector - Emitter Breakdown Voltage SYMBOL ICBO IEBO V (BR) CEO h FE (1) DC Current Gain h FE (2) h FE (3) Collector- Emitter Saturation Voltage Base- Emitter Saturation Voltage Transition...
