HT7533
HT7533 is LDO High voltage regulator manufactured by UMW.
- Part of the HT7530 comparator family.
- Part of the HT7530 comparator family.

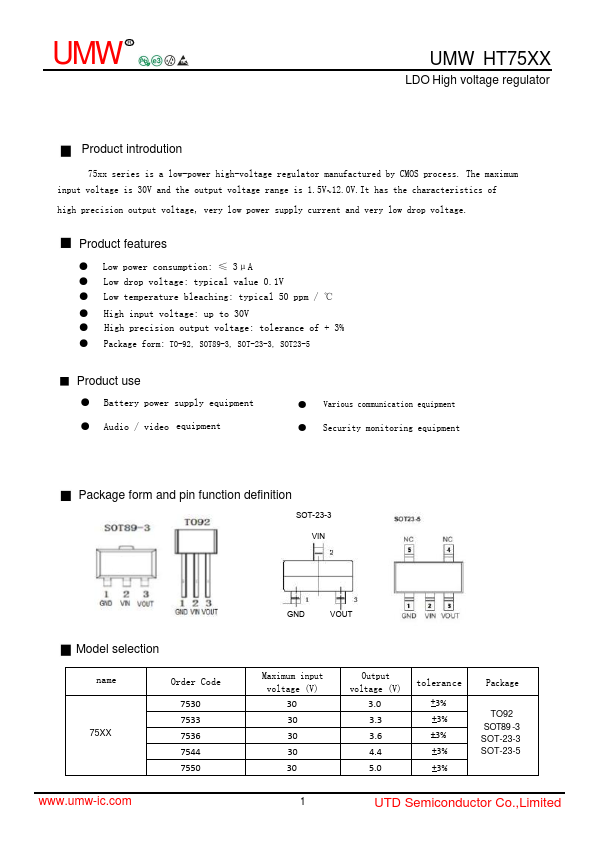

UMW R
UMW HT75XX
LDO High voltage regulator
Product introdution
75xx series is a low-power high-voltage regulator manufactured by CMOS process. The maximum input voltage is 30V and the output voltage range is 1.5V~12.0V.It has the characteristics of high precision output voltage, very low power supply current and very low drop voltage.
Product Features
- Low power consumption: ≤ 3μA
- Low drop voltage: typical value 0.1V
- Low temperature bleaching: typical 50 ppm / ℃
- High input voltage: up to 30V
- High precision output voltage: tolerance of + 3%
- Package form: TO-92, SOT89-3, SOT-23-3, SOT23-5
- Product use
- Battery power supply equipment
- Audio / video equipment
- Various munication equipment
- Security monitoring equipment
Package form and pin function definition
SOT-23-3 VIN
Model selection name
75XX
Order Code
7530 7533 7536 7544 7550
.umw-ic.
VOUT
Maximum input voltage (V)
30 30 30 30 30
Output voltage (V)
3.0 3.3 3.6 4.4 5.0 toleran ce
+3% +3% +3% +3%...
