Part HT7550-2
Description 45V Low Voltage Low Dropout Linear Regulator
Category LDO Regulator
Manufacturer UMW
Size 1.73 MB
HT7550-2 Datasheet (PDF) Download
Pricing from 0.0287 USD, available from Win Source and Anlinkda.
🏠
UMW

HT7550-2 Overview

Key Specifications

Package: TO-92
Max Operating Temp: 85 °C
Min Operating Temp: -40 °C

Key Features

  • low quiescent power consumption, output short-circuit protection, and high-temperature output current reduction to prevent system failure
  • It is widely used to power various audio, video, and communications equipment

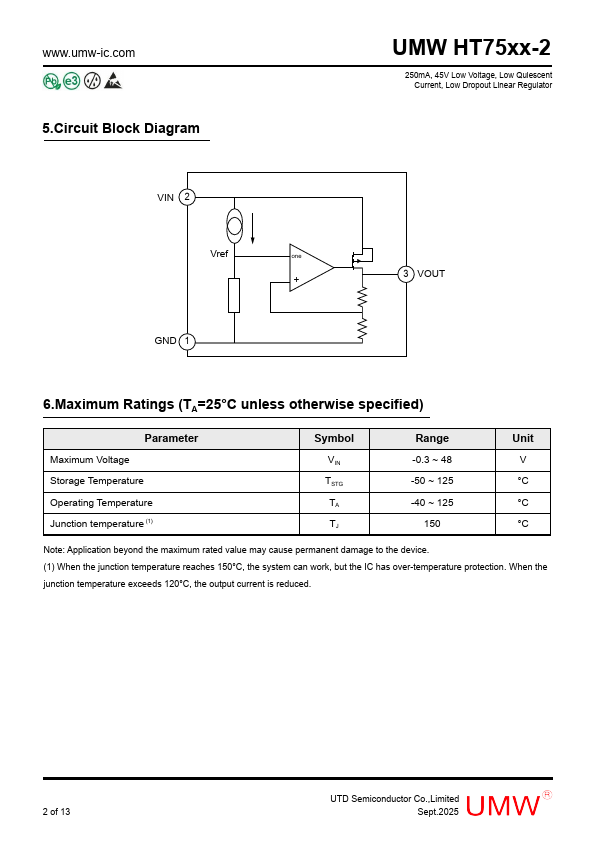

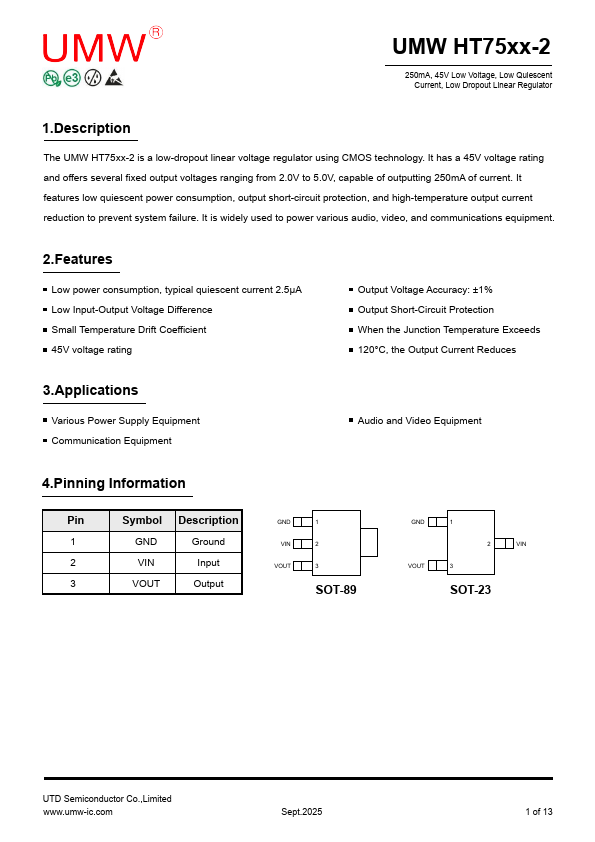

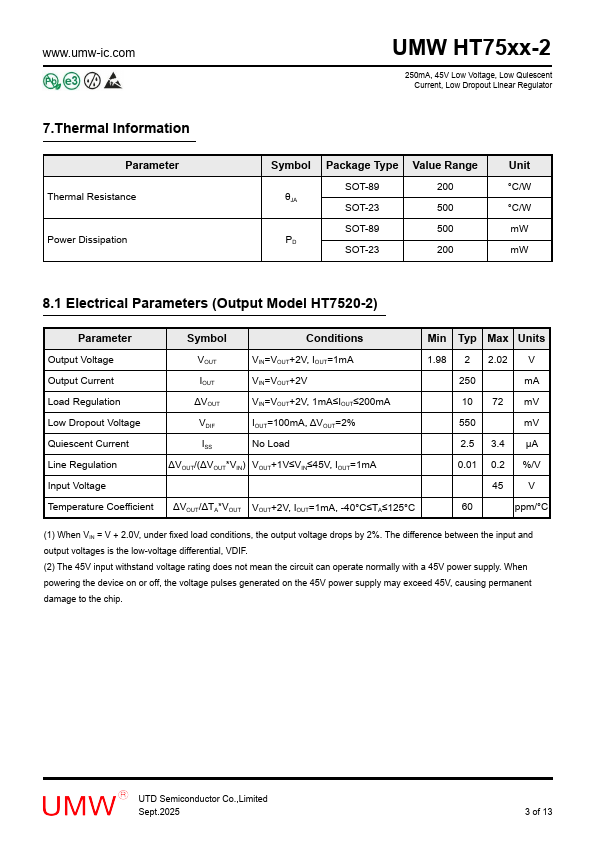

HT7550-2 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Win Source 368000 1745+ : 0.0287 USD
4240+ : 0.0236 USD
6580+ : 0.0228 USD
9050+ : 0.0221 USD		 View Offer
Anlinkda 128432 1+ : 0.139 USD
10+ : 0.125 USD
100+ : 0.113 USD
1000+ : 0.101 USD		 View Offer

Related Datasheets

Part Number Manufacturer Description
HT7550-2 Holtek Semiconductor 100mA Low Power LDO
HT7550-1 Holtek Semiconductor 100mA Low Power LDO
HT7550 Holtek Semiconductor High Driver Regulator
HT7550 MLS Microelectronics 150mA Low Power Consumption LDO
HT7550-3 Holtek Semiconductor 100mA TinyPower LDO

HT7550-2 Datasheet
