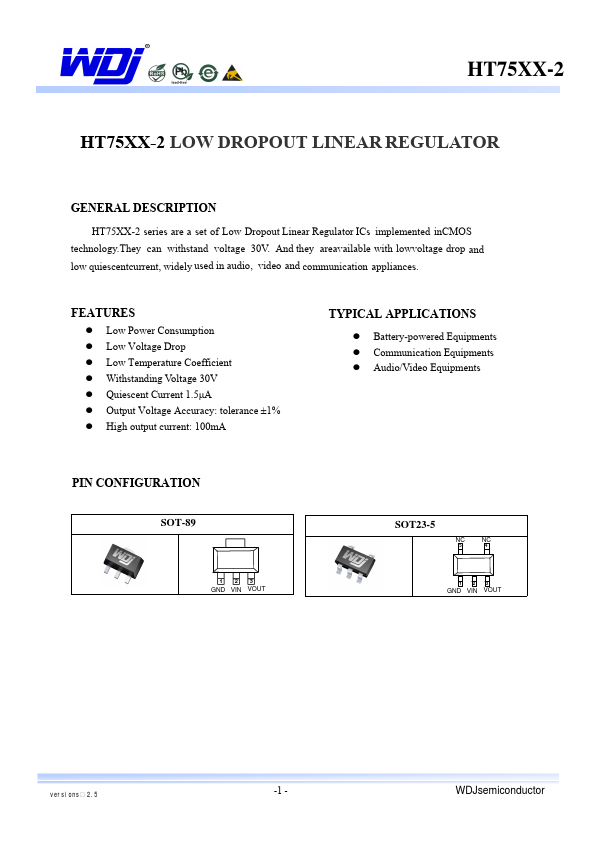

HT7550-2 Description
HT75XX-2 series are a set of Low Dropout Linear Regulator ICs implemented inCMOS technology.They can withstand voltage 30V. And they areavailable with lowvoltage drop and low quiescentcurrent, widely used in audio, video and munication appliances.
HT7550-2 Key Features
- Low Power Consumption
- Low Voltage Drop
- Low Temperature Coefficient
- Withstanding Voltage 30V
- Quiescent Current 1.5μA
- Output Voltage Accuracy: tolerance ±1%
- High output current: 100mA
