Unisonic Technologies 2SB1424

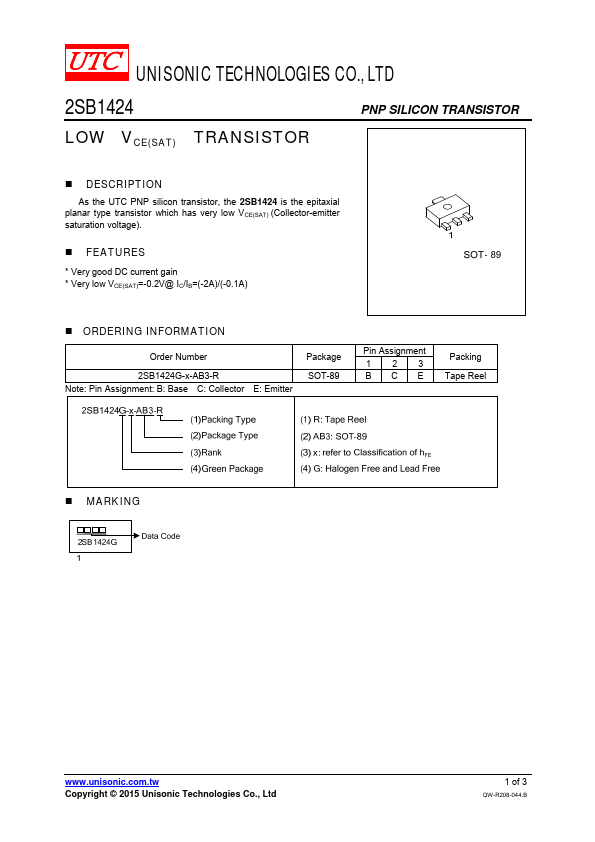

the 2SB1424 is the epitaxial planar type transistor which has very low VCE(SAT) (Collector-emitter saturation voltage).| Part No. | 2SB1424 |
|---|---|
| Datasheet | 2SB1424 Download |
| Manufacturer |  Unisonic Technologies |
| Description | PNP SILICON TRANSISTOR |
| Buy | Stock & Price |
DESCRIPTION
As the UTC PNP silicon transistor,●
FEATURES
* Very good DC current gain * Very low VCE(SAT)=-0.2V@ IC/IB=(-2A)/(-0.1A)● ORDERING INFORMATION Order Number 2SB1424G-x-AB3-R Note: Pin Assignment: B: Base C: Collector E: Emitter Package SOT-89 Pin Assignment 123 BCE Packing Tape Reel
● MARKING Copyright © 2015 Unisonic Technologies Co., Ltd 1 of 3 QW-R208-044.B 2SB1424 PNP SILICON TRANSISTOR

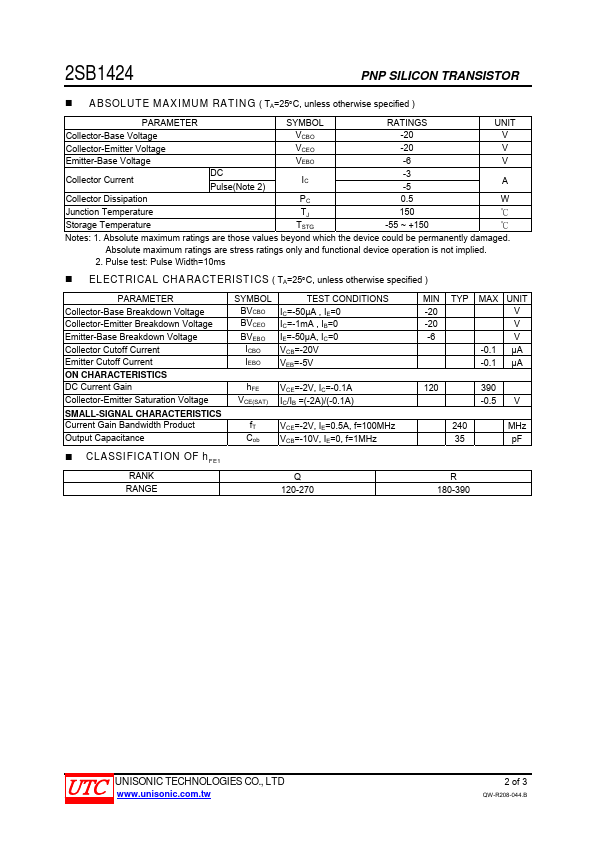

● ABSOLUTE MAXIMUM RATING ( TA=25C, unless otherwise specified ) PARAMETER SYMBOL RATINGS UNIT Collector-Base Voltage VCBO -20 V Collector-Emitter Voltage VCEO -20 V Emitter-Base Voltage VEBO -6 V Collector Current DC Pulse(Note 2) IC -3 -5 A Collector Dissipation PC 0.5 W Junction Temperature TJ 150 ℃ Storage Temperature TSTG -55 ~ +150 ℃ Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged. Note: 1 .Absolute maximum ratings are stress ratings only and functional device operation is not implied. Note: 2. Pulse test: Pulse Width=10ms
●...
