Unisonic Technologies 2SD1691
NPN SILICON TRANSISTOR
- Max Operating Temp : 150°C
- Min Operating Temp : -55°C
Source:
Octopart
| Part No. | 2SD1691 |
|---|---|
| Datasheet | 2SD1691 Download |
| Manufacturer |  Unisonic Technologies |
| Description | NPN SILICON TRANSISTOR |
| Buy | Stock & Price |

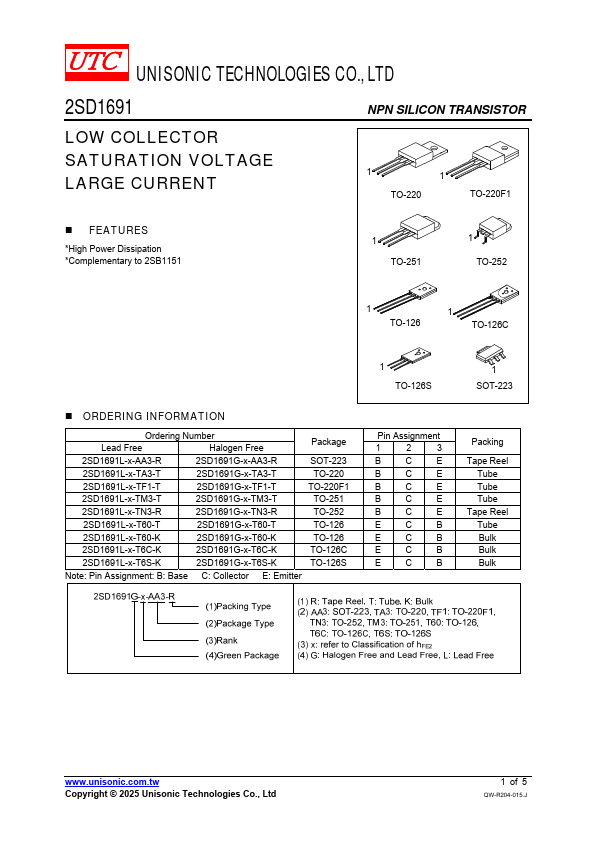

FEATURES
*High Power Dissipation *Complementary to 2SB1151 1 TO-251 1 TO-252 1 TO-126 1 TO-126C● ORDERING INFORMATION Ordering Number Lead Free Halogen Free Package 2SD1691L-x-AA3-R 2SD1691G-x-AA3-R SOT-223 2SD1691L-x-TA3-T 2SD1691G-x-TA3-T TO-220 2SD1691L-x-TF1-T 2SD1691G-x-TF1-T TO-220F1 2SD1691L-x-TM3-T 2SD1691G-x-TM3-T TO-251 2SD1691L-x-TN3-R 2SD1691G-x-TN3-R TO-252 2SD1691L-x-T60-T 2SD1691G-x-T60-T TO-126 2SD1691L-x-T60-K 2SD1691G-x-T60-K TO-126 2SD1691L-x-T6C-K 2SD1691G-x-T6C-K TO-126C 2SD1691L-x-T6S-K 2SD1691G-x-T6S-K TO-126S Note: Pin Assignment: B: Base C: Collector E: Emitter 1 TO-126S Pin Assignment 1 2 3 B C E B C E B C E B C E B C E E C B E C B E C B E C B 1 SOT-223 Packing Tape Reel Tube Tube Tube Tape Reel Tube Bulk Bulk Bulk Copyright © 2025 Unisonic Technologies Co., Ltd 1 of 5 QW-R204-015.J 2SD1691

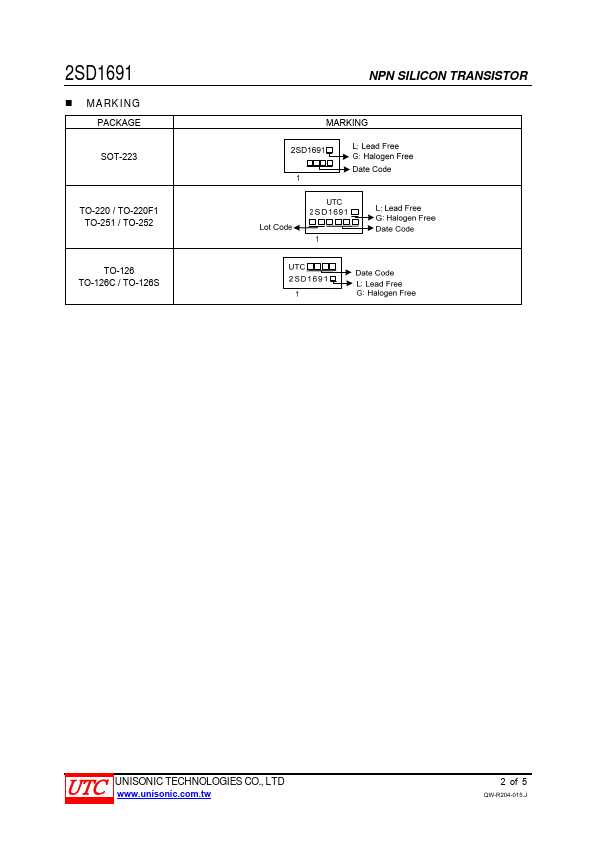

● MARKING PACKAGE SOT-223 TO-220 / TO-220F1 TO-251 / TO-252 TO-126 TO-126C / TO-126S NPN SILICON TRANSISTOR MARKING UNISONIC TECHNOLOGIES CO., LTD 2 of 5 QW-R204-015.J 2SD...
