Unisonic Technologies 2SD2403
2SD2403 is a transistor featuring high current capacitance in small dimension. This transistor is ideal for DC/DC converters and motor drivers.| Part No. | 2SD2403 |
|---|---|
| Datasheet | 2SD2403 Download |
| Manufacturer |  Unisonic Technologies |
| Description | NPN SILICON TRANSISTOR |
| Buy | Stock & Price |
DESCRIPTION
The UTC●
FEATURES
* High current capacitance * Low collector saturation voltage● ORDERING INFORMATION Ordering Number Lead Free Halogen Free Package 2SD2403L-AB3-R 2SD2403G-AB3-R SOT-89 Note: Pin assignment: E: Emitter C: Collector B: Base 1 SOT-89 Pin Assignment 1 2 3 E C B Packing Tape Reel
● MARKING Copyright © 2025 Unisonic Technologies Co., Ltd 1 of 3 QW-R208-070.a 2SD2403 Preliminary NPN SILICON TRANSISTOR
●
ABSOLUTE MAXIMUM RATINGS

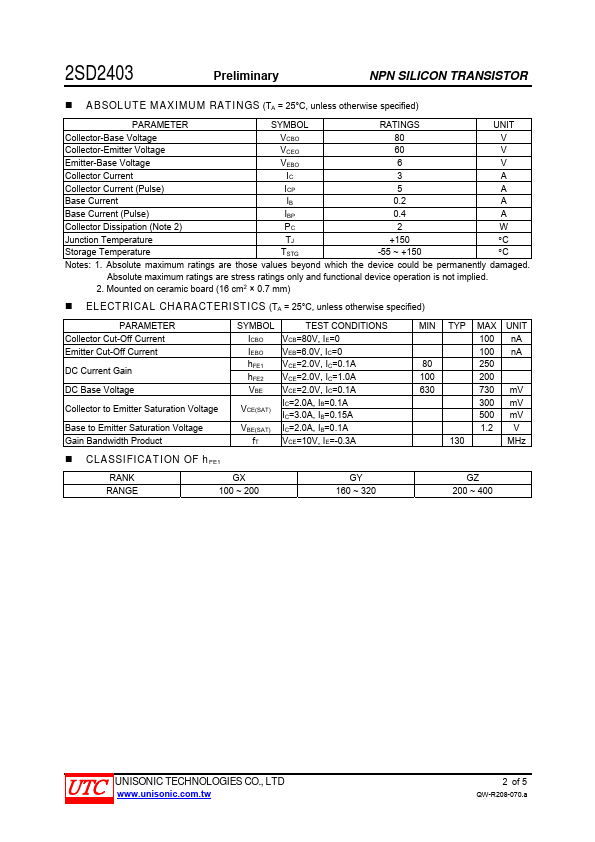

(TA = 25°C, unless otherwise specified) PARAMETER SYMBOL RATINGS UNIT Collector-Base Voltage VCBO 80 V Collector-Emitter Voltage VCEO 60 V Emitter-Base Voltage VEBO 6 V Collector Current IC 3 A Collector Current (Pulse) ICP 5 A Base Current IB 0.2 A Base Current (Pulse) IBP 0.4 A Collector Dissipation (Note 2) PC 2 W Junction Temperature TJ +150 C Storage Temperature TSTG -55 ~ +150 C Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.
