BAT54S - SCHOTTKY BARRIER (DUAL) DIODES

Description

Planar Schottky barrier diodes are encapsulated in the SOT-23 small plastic SMD package.

Single diodes and dual diodes with different pin configuration are available.

Features

  • S.
  • Low forward voltage.
  • Guard ring protected.
  • Small plastic SMD package.
  • SYMBOL 3 21.

📥 Download Datasheet

Datasheet preview – BAT54S

Datasheet Details

Part number BAT54S
Manufacturer UTC
File Size 174.38 KB
Description SCHOTTKY BARRIER (DUAL) DIODES
Datasheet download datasheet BAT54S Datasheet

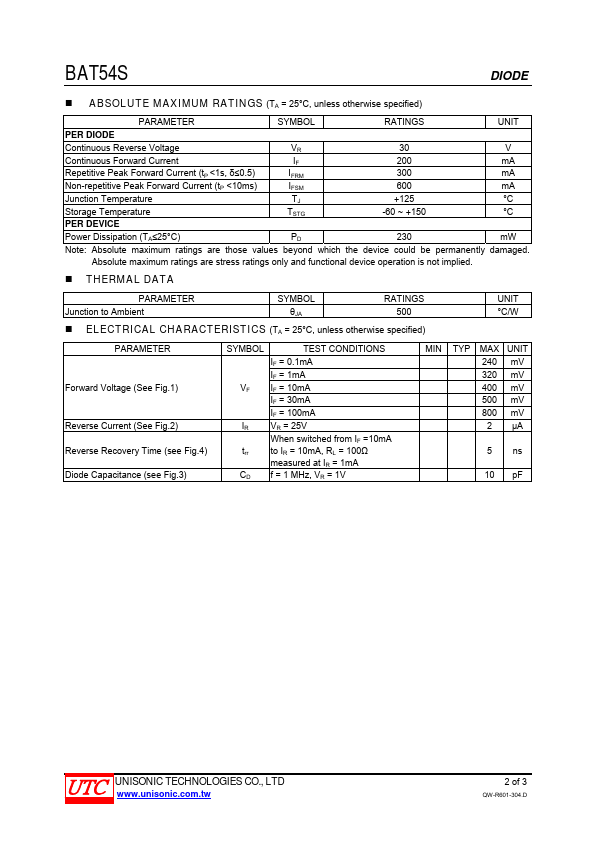

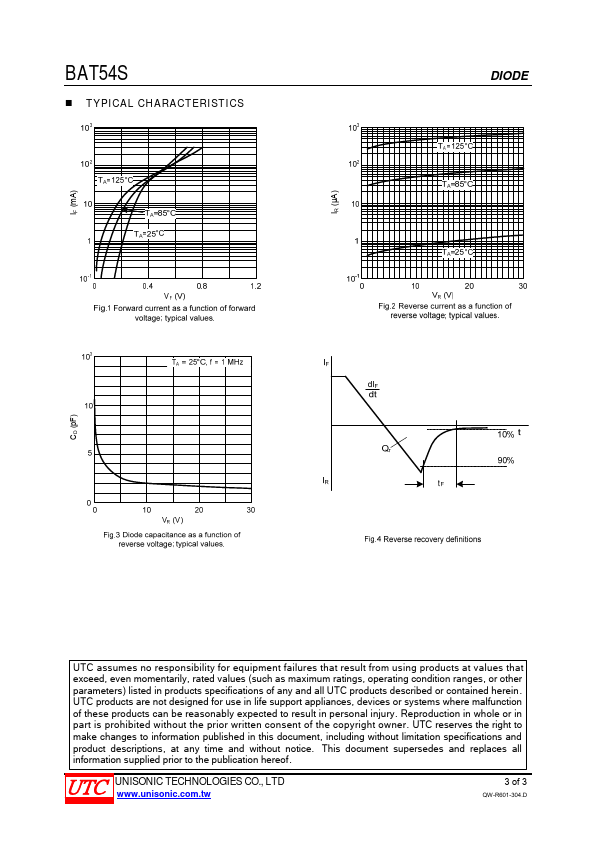

Additional preview pages of the BAT54S datasheet.

📁 Similar Datasheet

  • BAT54S - Schottky Diodes (Fairchild Semiconductor)
  • BAT54S - SURFACE MOUNT SCHOTTKY BARRIER DIODE (WON-TOP)
  • BAT54S - Schottky barrier diodes (nexperia)
  • BAT54S - SCHOTTKY DIODE (Rectron Semiconductor)
  • BAT54S - Schottky Diodes (General Semiconductor)
  • BAT54S - Small Signal Schottky Diode (Vishay Telefunken)
  • BAT54S - 250mWatt/ 30Volt Schottky Barrier Diode (Micro Commercial Components)
  • BAT54S - SMD Small Signal Schottky Diodes (Diotec)
  • BAT54S - Surface Mount Schottky Barrier diode (GME)
  • BAT54S - Schottky barrier diodes (NXP)
Other Datasheets by UTC
  • BAT54SDW - SCHOTTKY BARRIER (DUAL) DIODES
  • BAT54STB - SCHOTTKY BARRIER (DUAL) DIODES
  • BAT54SW - SCHOTTKY BARRIER (DUAL) DIODES
  • BAT54 - SCHOTTKY BARRIER DIODE
  • BAT54A - SCHOTTKY BARRIER (DUAL) DIODES
  • BAT54ADW - SCHOTTKY BARRIER (DUAL) DIODES
  • BAT54ATB - SCHOTTKY BARRIER (DUAL) DIODES
  • BAT54AW - SCHOTTKY BARRIER (DUAL) DIODES

Full PDF Text Transcription

Click to expand full text
UNISONIC TECHNOLOGIES CO., LTD BAT54S SCHOTTKY BARRIER (DUAL) DIODES DIODE  DESCRIPTION Planar Schottky barrier diodes are encapsulated in the SOT-23 small plastic SMD package. Single diodes and dual diodes with different pin configuration are available.  FEATURES * Low forward voltage * Guard ring protected * Small plastic SMD package  SYMBOL 3 21  ORDERING INFORMATION Ordering Number BAT54SG-AE3-R Note: Pin Assignment: A: Anode K: Cathode Package SOT-23 Pin Assignment 123 K1 K2 K2A1 Packing Tape Reel  MARKING www.unisonic.com.tw Copyright © 2014 Unisonic Technologies Co., Ltd 1 of 3 QW-R601-046.
