BU406 - SILICON NPN SWITCHING TRANSISTOR

Product Overview

📥 Download Datasheet

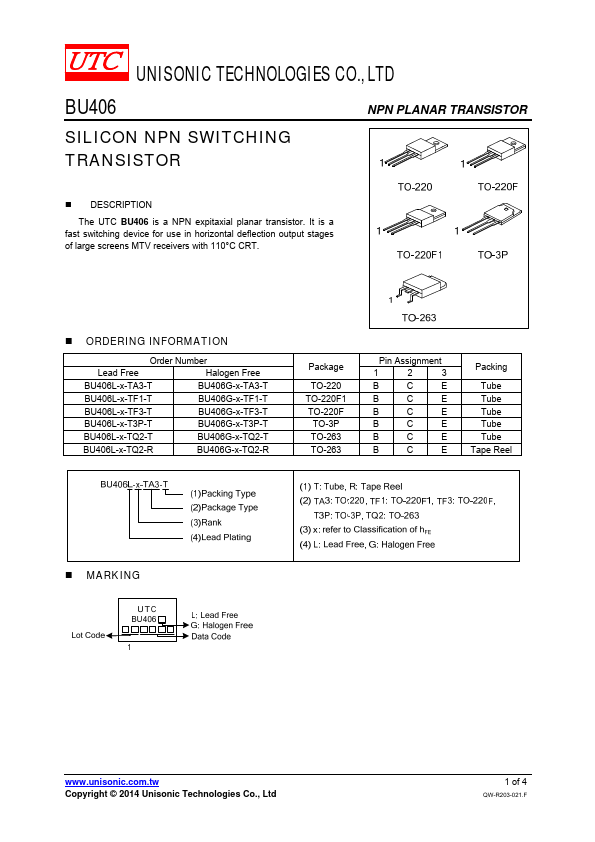

Datasheet preview – BU406

Datasheet Details

Part number BU406
Manufacturer UTC
File Size 179.73 KB
Description SILICON NPN SWITCHING TRANSISTOR
Datasheet download datasheet BU406 Datasheet

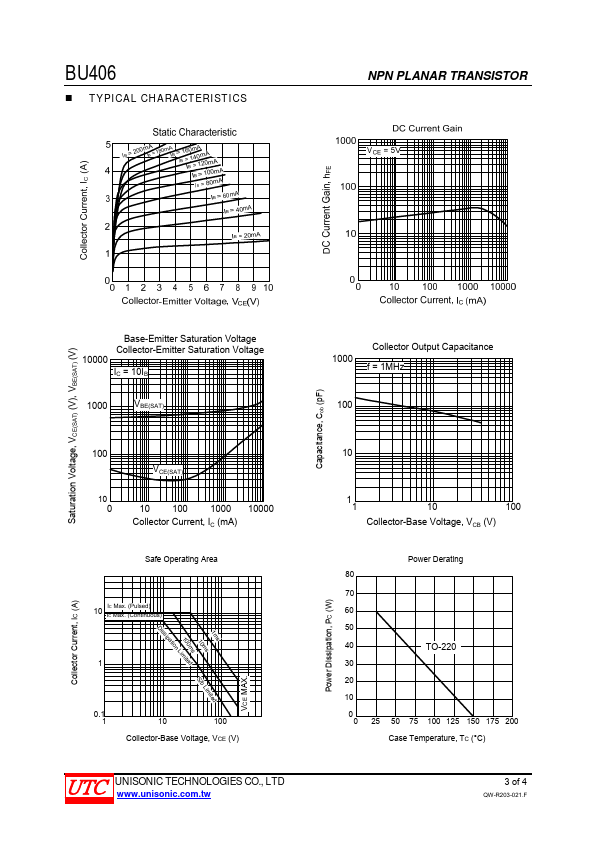

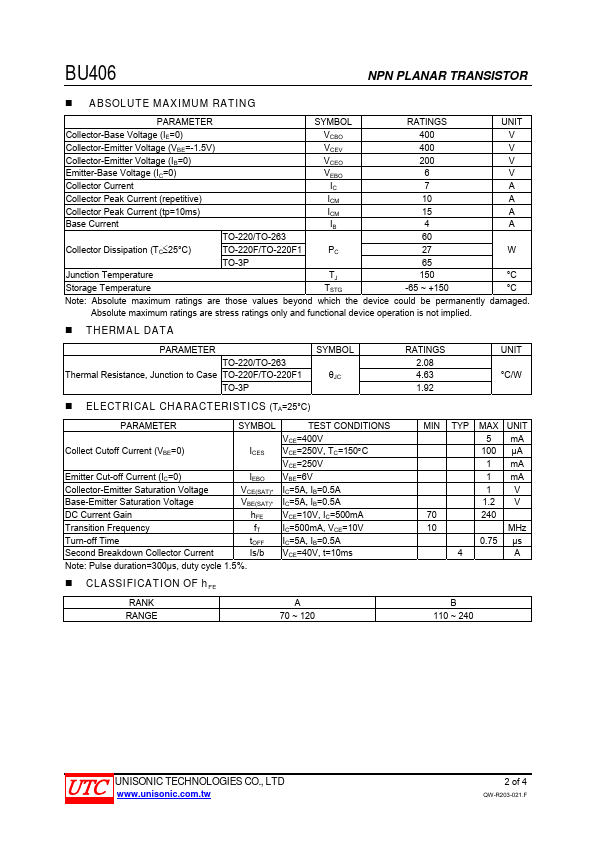

Additional preview pages of the BU406 datasheet.

Product details

Description

The UTC BU406 is a NPN expitaxial planar transistor.

It is a fast switching device for use in horizontal deflection output stages of large screens MTV receivers with 110 CRT.

Pb-free plating product number: BU406L ORDERING INFORMATION Order Number Normal Lea
📁 Similar Datasheet
  • BU406 - NPN PLASTIC POWER TRANSISTORS (CDIL)
  • BU406 - NPN SLICON POWER TRANSISTOR (Central Semiconductor)
  • BU406 - NPN Silicon Power Transistors (Motorola Inc)
  • BU406 - NPN Power Transistors (ON Semiconductor)
  • BU406 - SILICON NPN SWITCHING TRANSISTOR (ST Microelectronics)
  • BU406 - NPN Epitaxial Silicon Transistor (Fairchild Semiconductor)
  • BU406 - NPN Transistor (INCHANGE)
  • BU406 - NPN SILICON POWER TRANSISTORS (Bourns Electronic Solutions)
Other Datasheets by UTC
  • BU407 - NPN EXPITAXIAL PLANAR TRANSISTOR
Published: |
