MMBTA42 - HIGH VOLTAGE TRANSISTOR

General Description

The UTC MMBTA42/43 are high voltage transistors, designed for telephone switch and high voltage switch.

Key Features

  • S.
  • Collector-Emitter voltage: VCEO=300V(MMBTA42).
  • Collector-Emitter voltage: VCEO=200V(MMBTA43).
  • High current gain.
  • Collector Dissipation: Pc (max) =350mW 3 1 2 SOT-23 (JEDEC TO-236).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBTA42 Surface mount High Voltage Transistors Diotec
MMBTA42 NPN High Voltage Amplifier GME
MMBTA42 Silicon NPN transistor BLUE ROCKET ELECTRONICS
MMBTA42 NPN Transistor HOTTECH
MMBTA42 NPN Transistors Kexin

Other Datasheets by Unisonic Technologies

Part Number Description
MMBTA43 HIGH VOLTAGE TRANSISTOR
MMBTA44 (MMBTA44 / MMBTA45) HIGH VOLTAGE TRANSISTOR NPN EPITAXIAL SILICON TRANSISTOR
MMBTA45 (MMBTA44 / MMBTA45) HIGH VOLTAGE TRANSISTOR NPN EPITAXIAL SILICON TRANSISTOR
MMBTA05 AMPLIFIER TRANSISTOR
MMBTA06 AMPLIFIER TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

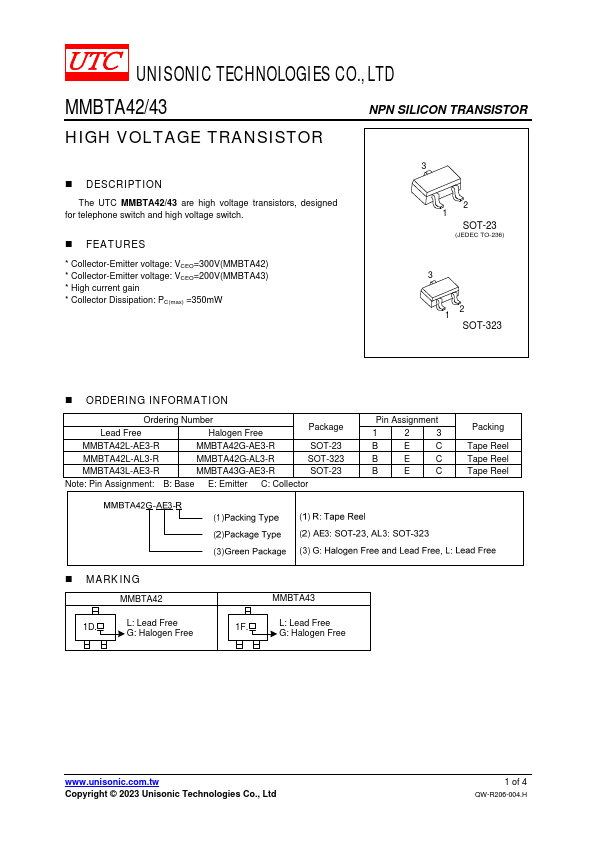

UNISONIC TECHNOLOGIES CO., LTD MMBTA42/43 NPN SILICON TRANSISTOR HIGH VOLTAGE TRANSISTOR  DESCRIPTION The UTC MMBTA42/43 are high voltage transistors, designed for telephone switch and high voltage switch.  FEATURES * Collector-Emitter voltage: VCEO=300V(MMBTA42) * Collector-Emitter voltage: VCEO=200V(MMBTA43) * High current gain * Collector Dissipation: Pc (max) =350mW 3 1 2 SOT-23 (JEDEC TO-236)  ORDERING INFORMATION Ordering Number MMBTA42G-AE3-R MMBTA43G-AE3-R Note: Pin Assignment: E: Emitter B: Base Package SOT-23 SOT-23 C: Collector Pin Assignment 123 EBC EBC Packing Tape Reel Tape Reel  MARKING MMBTA42 MMBTA43 www.unisonic.com.tw Copyright © 2014 Unisonic Technologies Co., Ltd 1 of 4 QW-R206-004.
