MMBTA45 - (MMBTA44 / MMBTA45) HIGH VOLTAGE TRANSISTOR NPN EPITAXIAL SILICON TRANSISTOR

This page provides the datasheet information for the MMBTA45, a member of the MMBTA44 (MMBTA44 / MMBTA45) HIGH VOLTAGE TRANSISTOR NPN EPITAXIAL SILICON TRANSISTOR family.

Datasheet Summary

Features

  • Collector-Emitter voltage: VCEO=400V (UTC MMBTA44) VCEO=350V (UTC MMBTA45).
  • Collector current up to 300mA.
  • Complement to UTC MMBTA94/93.
  • Power Dissipation: PD(max)=350mW 3 NPN.

📥 Download Datasheet

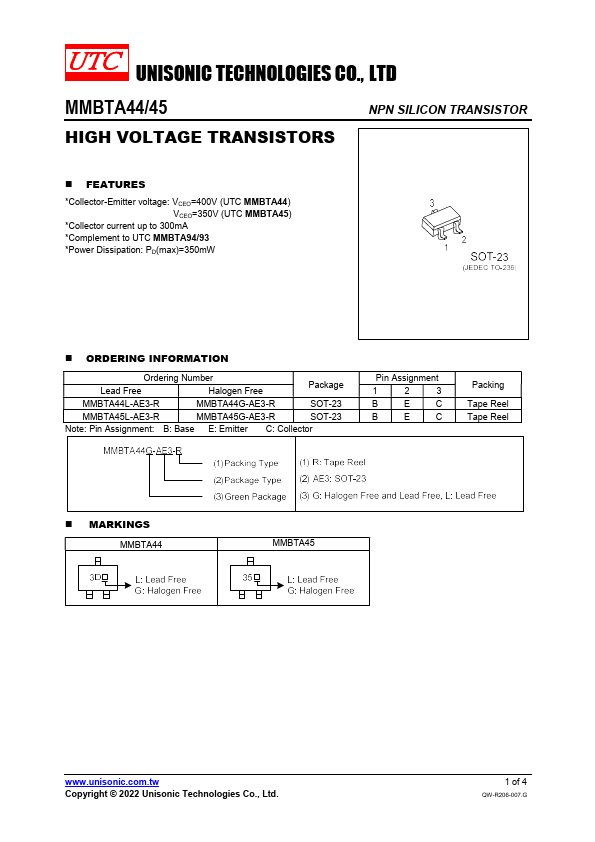

Datasheet preview – MMBTA45

Datasheet Details

Part number MMBTA45
Manufacturer UTC
File Size 100.09 KB
Description (MMBTA44 / MMBTA45) HIGH VOLTAGE TRANSISTOR NPN EPITAXIAL SILICON TRANSISTOR
Datasheet download datasheet MMBTA45 Datasheet

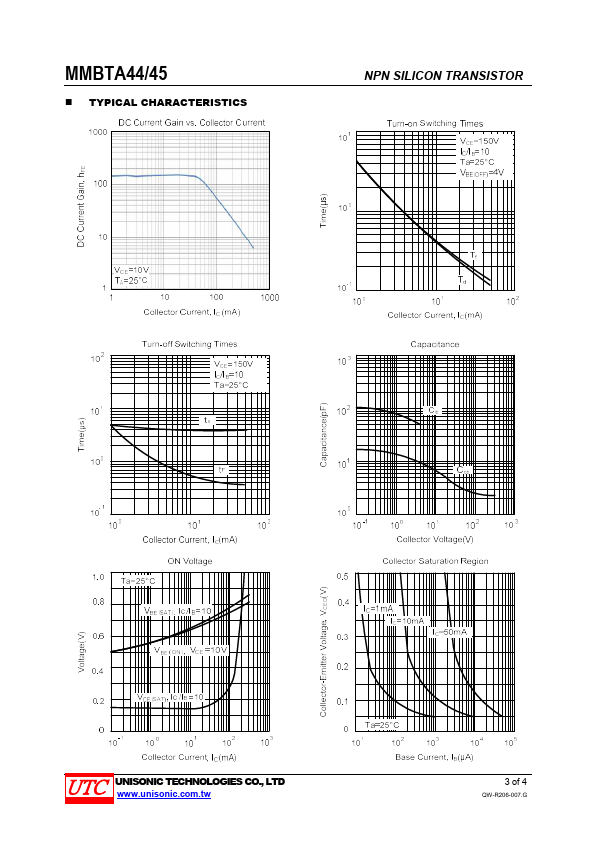

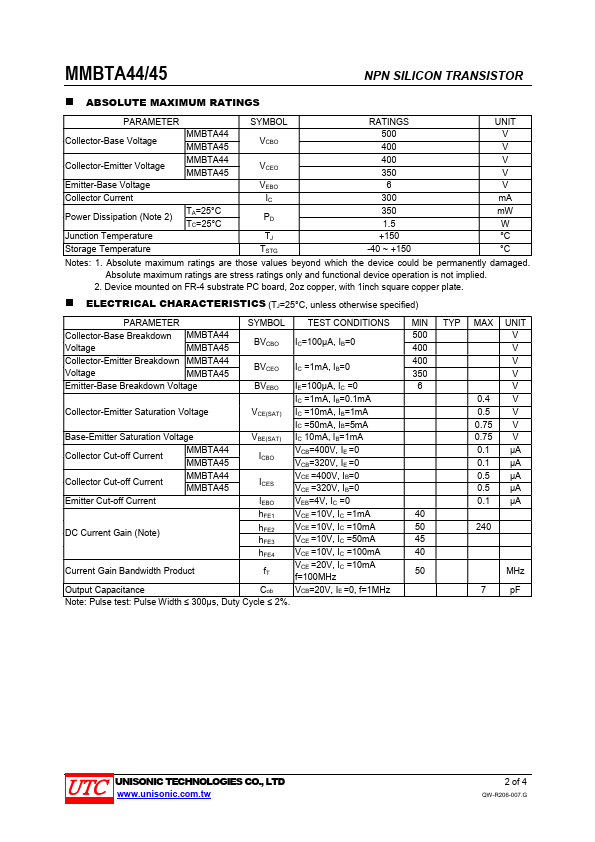

Additional preview pages of the MMBTA45 datasheet.

📁 Similar Datasheet

  • MMBTA42 - Surface mount High Voltage Transistors (Diotec)
  • MMBTA42 - NPN High Voltage Amplifier (GME)
  • MMBTA42 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • MMBTA42 - NPN Transistor (HOTTECH)
  • MMBTA42 - NPN Transistors (Kexin)
  • MMBTA42 - General Purpose NPN Silicon Transistor (SeCoS)
  • MMBTA42 - High-Voltage NPN Transistor (WEITRON)
  • MMBTA42 - NPN Transistor (Rectron)
  • MMBTA42 - NPN Silicon High Voltage Transistors (SEMTECH)
  • MMBTA42 - SMD High Voltage Transistor (TAITRON)
Other Datasheets by UTC
  • MMBTA42 - HIGH VOLTAGE TRANSISTOR
  • MMBTA43 - HIGH VOLTAGE TRANSISTOR
  • MMBTA44 - (MMBTA44 / MMBTA45) HIGH VOLTAGE TRANSISTOR NPN EPITAXIAL SILICON TRANSISTOR
  • MMBTA05 - AMPLIFIER TRANSISTOR
  • MMBTA06 - AMPLIFIER TRANSISTOR
  • MMBTA13 - DARLINGTON TRANSISTOR
  • MMBTA14 - DARLINGTON TRANSISTOR
  • MMBTA55 - AMPLIFIER TRANSISTOR

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com UNISONIC TECHNOLOGIES CO.,LTD. MMBTA44/45 HIGH VOLTAGE TRANSISTOR FEATURES *Collector-Emitter voltage: VCEO=400V (UTC MMBTA44) VCEO=350V (UTC MMBTA45) *Collector current up to 300mA *Complement to UTC MMBTA94/93 *Power Dissipation: PD(max)=350mW 3 NPN EPITAXIAL SILICON TRANSISTOR 1 2 MARKING (MMBTA44) SOT-23 3D * Pb-free plating product number: MMBTA44L/MMBTA45L PIN CONFIGURATION PIN NO. PIN NAME 1 Emitter 2 Base 3 Collector ORDERING INFORMATION Order Number Normal Lead free MMBTA44-AE3-R MMBTA44L-AE3-R MMBTA45-AE3-R MMBTA45L-AE3-R Package SOT-23 SOT-23 Packing Tape Reel Tape Reel www.unisonic.com.tw Copyright © 2005 Unisonic Technologies Co.,LTD. 1 QW-R206-007.
