MMBTA44
MMBTA44 is General Purpose Transistors NPN Silicon manufactured by Slkor Micro Semicon.
FEATURE
- High Collector-Emitter Voltage
- plement to MMBTA94
SOT-23
- MAXIMUM RATINGS (TA=25℃unless otherwise noted)
Parameter
Symbol
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage
VCBO VCEO VEBO
Collector Current -Continuous
Power Dissipation
Thermal Resistance from Junction to Ambient
RθJA
Junction Temperature
Storage Temperature
TSTG
Limit 400 400
6 0.2 0.35 357 150 -55～+150
Unit V V V A W
℃/W ℃ ℃
.slkormicro.

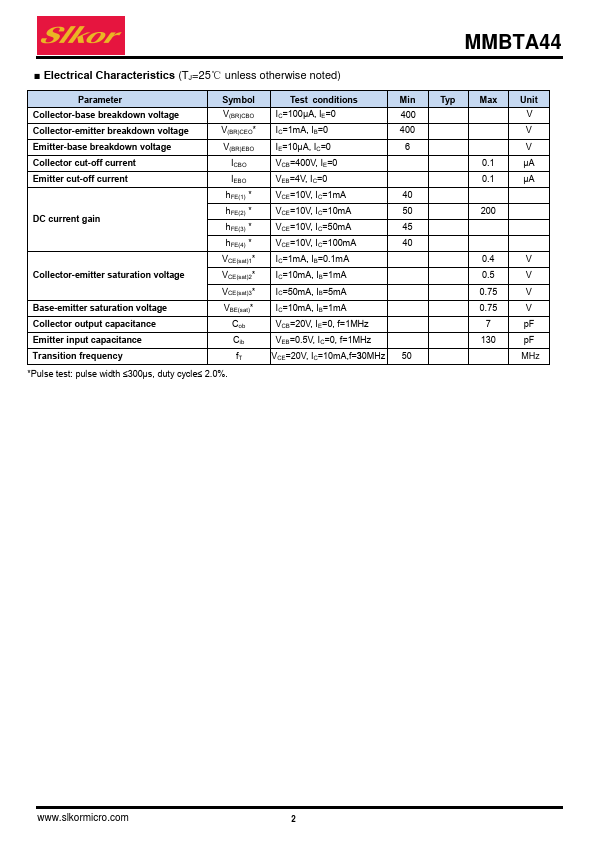

- Electrical Characteristics (TJ=25℃ unless otherwise noted)
Parameter
Symbol
Test conditions
Min
Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cut-off current Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Base-emitter saturation voltage Collector output capacitance Emitter input capacitance Transition frequency
V(BR)CBO
IC=100µA, IE=0
V(BR)CEO-
IC=1m A,...
