Unisonic Technologies RB501V-40

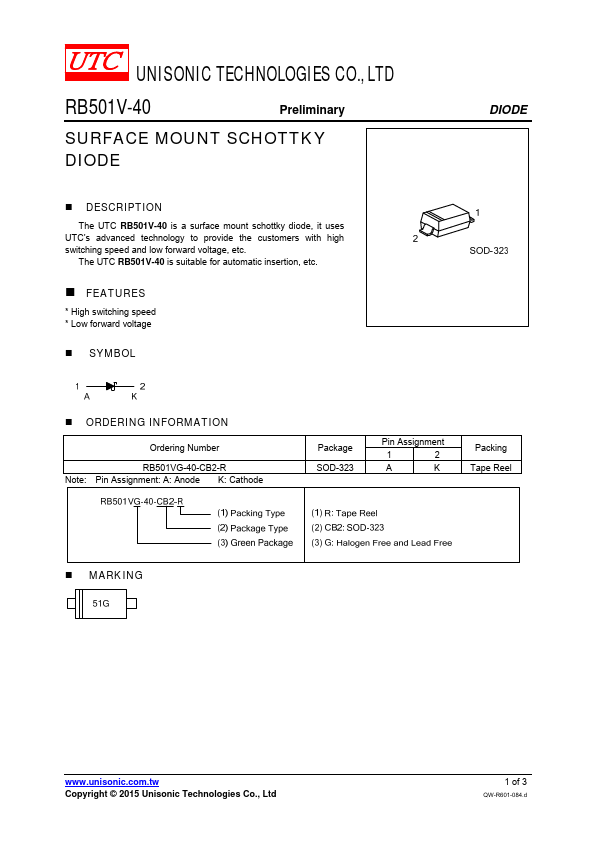

RB501V-40 is a surface mount schottky diode, it uses UTC’s advanced technology to provide the customers with high switching speed and low forward voltage, etc. The UTC RB501V-40 is suitable for automatic insertion, etc.| Part No. | RB501V-40 |
|---|---|
| Datasheet | RB501V-40 Download |
| Manufacturer |  Unisonic Technologies |
| Description | SURFACE MOUNT SCHOTTKY DIODE |
| Buy | Stock & Price |
DESCRIPTION
The UTC●
FEATURES
* High switching speed * Low forward voltage● SYMBOL DIODE
● ORDERING INFORMATION Ordering Number RB501VG-40-CB2-R Note: Pin Assignment: A: Anode K: Cathode Package SOD-323 Pin Assignment 1 2 A K Packing Tape Reel
● MARKING Copyright © 2015 Unisonic Technologies Co., Ltd 1 of 3 QW-R601-084.d RB501V-40 Preliminary DIODE
●
ABSOLUTE MAXIMUM RATINGS
