LR05 - Metal Strip Chip Resistors

Datasheet Summary

Features

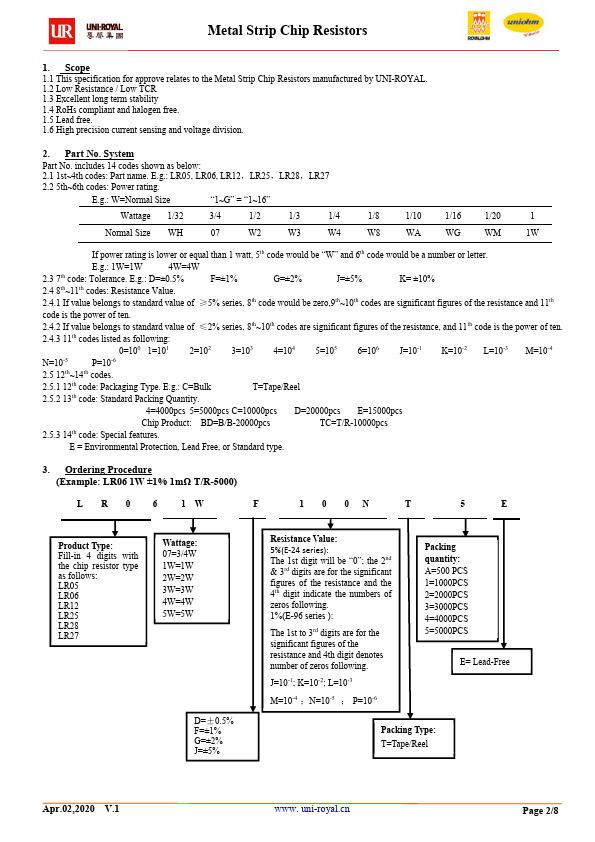

E = Environmental Protection, Lead Free, or Standard type. 3. Ordering Procedure (Example: LR06 1W ±1% 1mΩ T/R-5000) LR0 6 1W F 1 0 0N T 5 E Product Type: Fill-in 4 digits with the chip resistor type as follows: LR05 LR06 LR12 LR25 LR28 LR27 Wattage: 07=3/4W 1W=1W 2W=2W 3W=3W 4W=4W 5W=5W D=±0.5% F=±1% G=±2% J=±5% Resistance Value: 5%(E‐24 series): The 1st digit will be “0”; the 2nd & 3rd digits are for the significant figures of the resistance and the 4th digit indicate the number.

LR05 Metal Strip Chip Resistors by Uniroyal - Datasheet Preview — Datasheet preview – LR05

Datasheet Details

Part number	LR05
Manufacturer	Uniroyal
File Size	611.46 KB
Description	Metal Strip Chip Resistors
Datasheet	LR05 Datasheet
Additional preview pages of the LR05 datasheet.

📁 Similar Datasheet

LR052 - (LR0xx) LED (ETC)
LR056 - (LR0xx) LED (ETC)
LR001 - (LR0xx) LED (ETC)
LR002 - (LR0xx) LED (ETC)
LR003 - (LR0xx) LED (ETC)
LR006 - (LR0xx) LED (ETC)
LR008 - (LR0xx) LED (ETC)
LR010 - (LR0xx) LED (ETC)
LR013 - (LR0xx) LED (ETC)
LR013 - (LR0xx) LED (ETC)

Other Datasheets by Uniroyal

LR06 - Metal Strip Chip Resistors

Full PDF Text Transcription

Click to expand full text

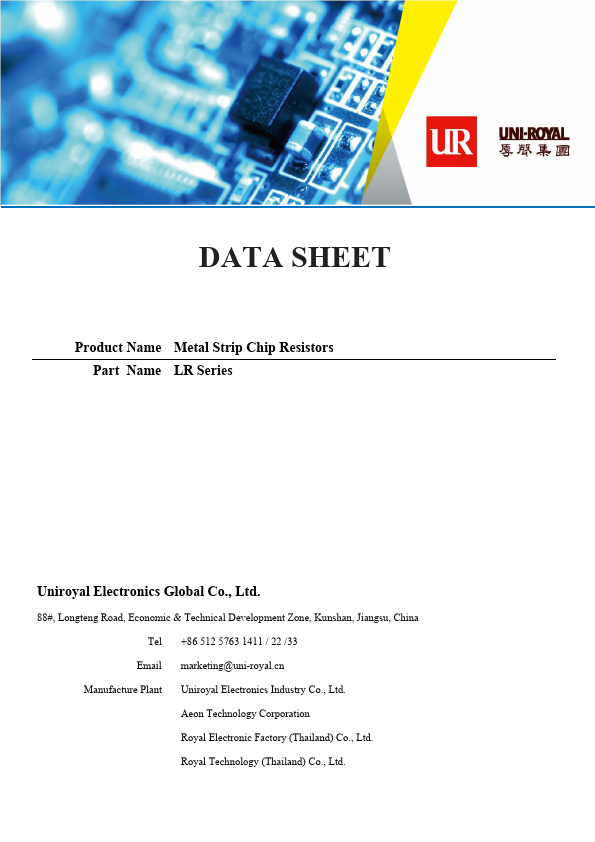

DATA SHEET Product Name Metal Strip Chip Resistors Part Name LR Series Uniroyal Electronics Global Co., Ltd. 88#, Longteng Road, Economic & Technical Development Zone, Kunshan, Jiangsu, China Tel +86 512 5763 1411 / 22 /33 Email marketing@uni-royal.cn Manufacture Plant Uniroyal Electronics Industry Co., Ltd. Aeon Technology Corporation Royal Electronic Factory (Thailand) Co., Ltd. Royal Technology (Thailand) Co., Ltd. Metal Strip Chip Resistors 1. Scope 1.1 This specification for approve relates to the Metal Strip Chip Resistors manufactured by UNI-ROYAL. 1.2 Low Resistance / Low TCR 1.3 Excellent long term stability 1.4 RoHs compliant and halogen free. 1.5 Lead free. 1.6 High precision current sensing and voltage division. 2. Part No. System Part No.
