Overview: UNISONIC TECHNOLOGIES CO., LTD BT169 SCR SCRS 3 .
| Part number | BT169 |
|---|---|
| Manufacturer | Unisonic Technologies |
| File Size | 441.44 KB |
| Description | SCR |
| Datasheet | BT169_UnisonicTechnologies.pdf |
|
|
|
Passivated, sensitive gate thyristors in a plastic envelope, intended for use in general purpose switching and phase control applications.
These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.

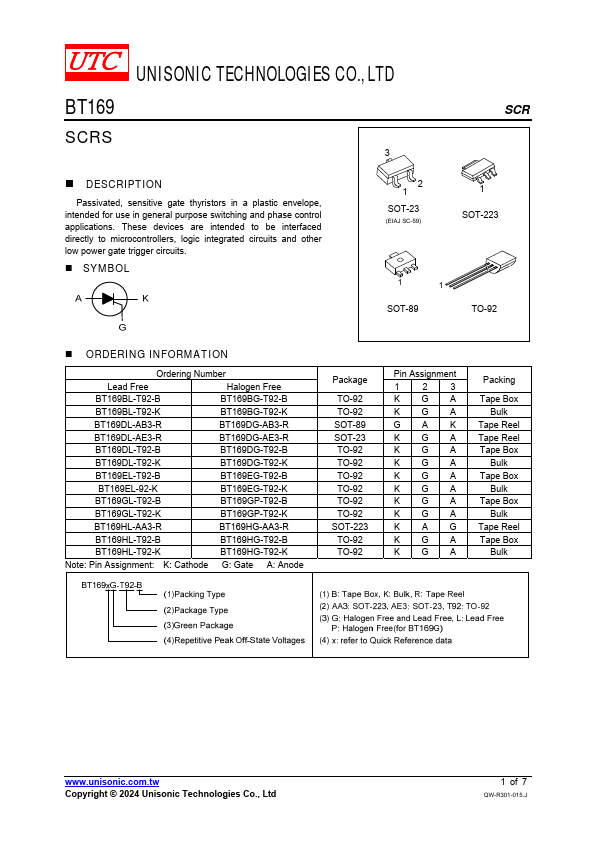

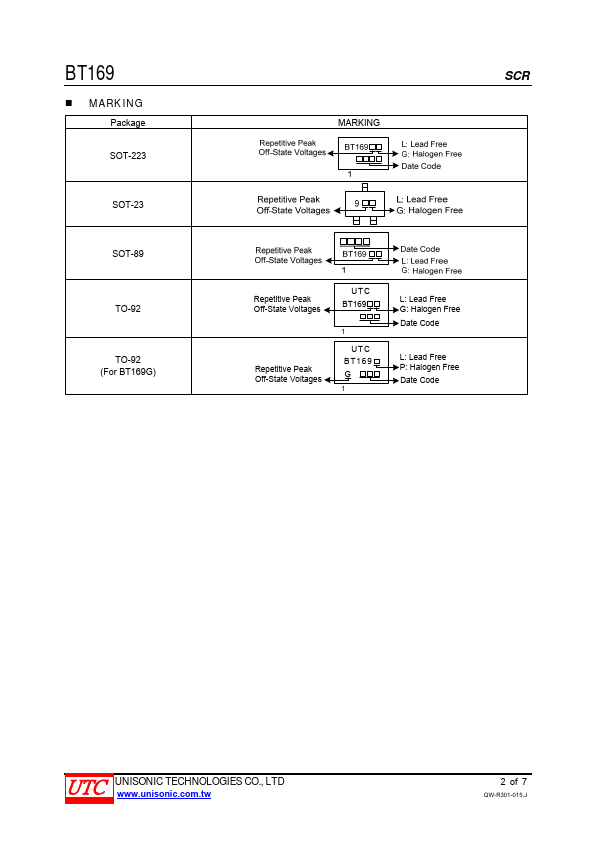

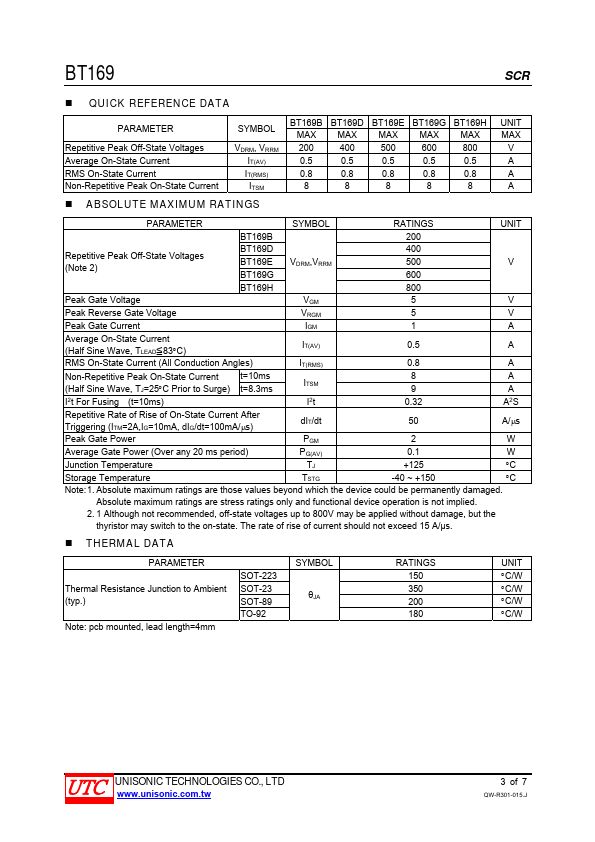

SYMBOL 2 1 SOT-23 (EIAJ SC-59) 1 SOT-223 1 1 SOT-89 TO-92 ORDERING INFORMATION Ordering Number Lead Free Halogen Free BT169BL-T92-B BT169BG-T92-B BT169BL-T92-K BT169BG-T92-K BT169DL-AB3-R BT169DG-AB3-R BT169DL-AE3-R BT169DG-AE3-R BT169DL-T92-B BT169DG-T92-B BT169DL-T92-K BT169DG-T92-K BT169EL-T92-B BT169EG-T92-B BT169EL-92-K BT169EG-T92-K BT169GL-T92-B BT169GP-T92-B BT169GL-T92-K BT169GP-T92-K BT169HL-AA3-R BT169HG-AA3-R BT169HL-T92-B BT169HG-T92-B BT169HL-T92-K BT169HG-T92-K Note: Pin Assignment: K: Cathode G: Gate A: Anode Package TO-92 TO-92 SOT-89 SOT-23 TO-92 TO-92 TO-92 TO-92 TO-92 TO-92 SOT-223 TO-92 TO-92 Pin Assignment 1 2 3 KG A KG A GA K KG A KG A KG A KG A KG A KG A KG A KAG KG A KG A Packing Tape Box Bulk Tape Reel Tape Reel Tape Box Bulk Tape Box Bulk Tape Box Bulk Tape Reel Tape Box Bulk .unisonic..tw Copyright © 2024 Unisonic Technologies Co., Ltd 1 of 7 QW-R301-015.J BT169 MARKING Package SOT-223 SOT-23 SOT-89 TO-92 TO-92 (For BT169G) MARKING SCR Repetitive Peak Off-State Voltages Repetitive Peak Off-State Voltages UTC BT169 1 UTC BT169 G 1 L: Lead Free G: Halogen Free Date Code L: Lead Free P: Halogen Free Date Code UNISONIC TECHNOLOGIES CO., LTD .unisonic..tw 2 of 7 QW-R301-015.J BT169 SCR QUICK REFERENCE DATA PARAMETER SYMBOL Repetitive Peak Off-State Voltages Average On-State Current RMS On-State Current Non-Repetitive Peak On-State Current VDRM, VRRM IT(AV) IT(RMS) ITSM ABSOLUTE MAXIMUM RATINGS BT169B MAX 200 0.5 0.8 8 BT169D MAX 400 0.5 0.8 8 BT169E MAX 500 0.5 0.8 8 BT169G MAX 600 0.5 0.8 8 BT169H MAX
