2SJ179 - 30V P-Channel MOSFET

VBsemi

Key Features

Halogen-free According to IEC 61249-2-21 Definition.
TrenchFET® Power MOSFET.
100 % Rg Tested.

2SJ179 30v p-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	2SJ179
Manufacturer	VBsemi
File Size	1.50 MB
Description	30V P-Channel MOSFET
Datasheet	2SJ179 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SJ179	P-Channel MOSFET	NEC
2SJ179	P-Channel MOSFET	Kexin
2SJ170	P-Channel MOSFET Transistor	Inchange Semiconductor
2SJ171	P-Channel MOSFET Transistor	Inchange Semiconductor
2SJ172	P-Channel MOSFET	Hitachi Semiconductor

Other Datasheets by VBsemi

Part Number	Description
2SJ177	P-Channel MOSFET
2SJ166	60V P-Channel MOSFET
2SJ168	P-Channel MOSFET
2SJ187	P-Channel 30V MOSFET
2SJ197	60V P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

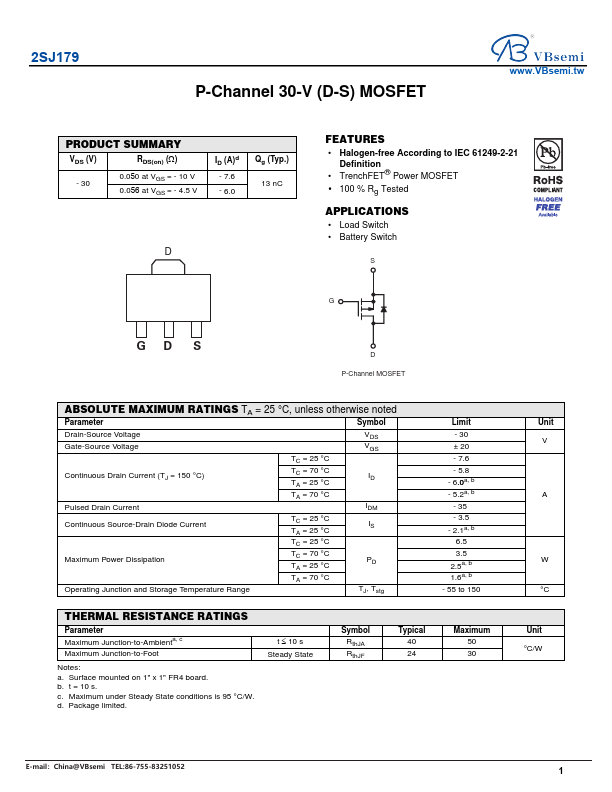

2SJ179 P-Channel 30-V (D-S) MOSFET www.VBsemi.tw PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.050 at VGS = - 10 V 0.056 at VGS = - 4.5 V ID (A)d - 7.6 - 6.0 Qg (Typ.
