2SJ207 datasheet by VBsemi.
| Part number | 2SJ207 |
|---|---|
| Datasheet | 2SJ207-VBsemi.pdf |
| File Size | 196.26 KB |
| Manufacturer | VBsemi |
| Description | 30V P-Channel MOSFET |
|
|

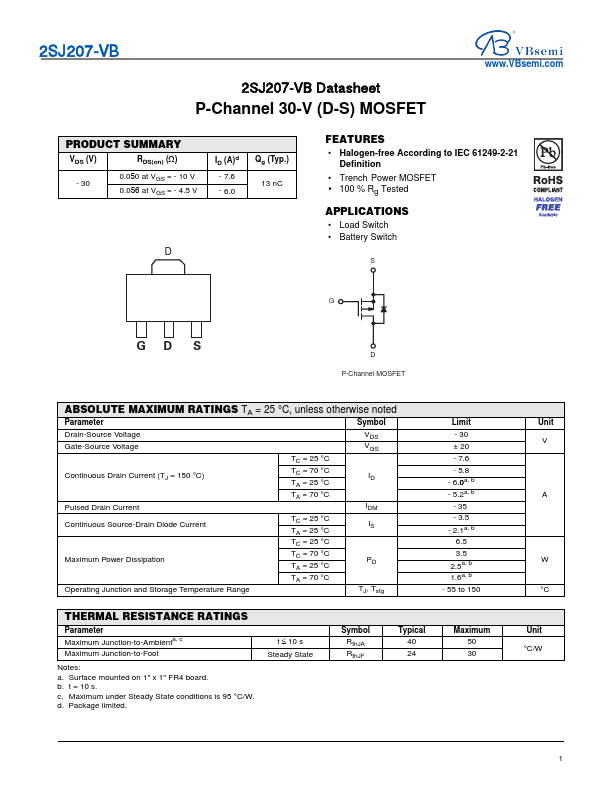

2SJ207-VB 2SJ207-VB Datasheet P-Channel 30-V (D-S) MOSFET .VBsemi. PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.050 at VGS = - 10 V 0.056 at VGS = - 4.5 V ID (A)d - 7.6 - 6.0 Qg (Typ.) 13 nC.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
2SJ207 | P-Channel MOSFET | NEC |
 |
2SJ207 | P-Channel MOSFET | Kexin |
 |
2SJ207 | P-CHANNEL MOSFET | Renesas |
| Part Number | Description |
|---|---|
| 2SJ203-T1B-A | 60V P-Channel MOSFET |
| 2SJ205 | 30V P-Channel MOSFET |
| 2SJ206 | 30V P-Channel MOSFET |
| 2SJ211-T1B-A | P-Channel MOSFET |
| 2SJ212 | 60V P-Channel MOSFET |
| 2SJ213 | 100V P-Channel MOSFET |
| 2SJ245S | P-Channel MOSFET |
| 2SJ287 | 30V P-Channel MOSFET |
| 2SJ288 | 60V P-Channel MOSFET |
| 2SJ0582 | Power MOSFET |
