2SJ287 - 30V P-Channel MOSFET

VBsemi

Key Features

Halogen-free According to IEC 61249-2-21 Definition.
Trench Power MOSFET.
100 % Rg Tested.

2SJ287 30v p-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	2SJ287
Manufacturer	VBsemi
File Size	196.27 KB
Description	30V P-Channel MOSFET
Datasheet	2SJ287 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SJ287	P-Channel MOSFET	Kexin
2SJ287	P-Channel Silicon MOSFET	Sanyo
2SJ280	SILICON P-CHANNEL MOSFET	Hitachi Semiconductor
2SJ281	P-Channel MOSFET	Sanyo Semicon Device
2SJ284	P-Channel MOSFET	Sanyo Semicon Device

Other Datasheets by VBsemi

Part Number	Description
2SJ288	60V P-Channel MOSFET
2SJ203-T1B-A	60V P-Channel MOSFET
2SJ205	30V P-Channel MOSFET
2SJ206	30V P-Channel MOSFET
2SJ207	30V P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

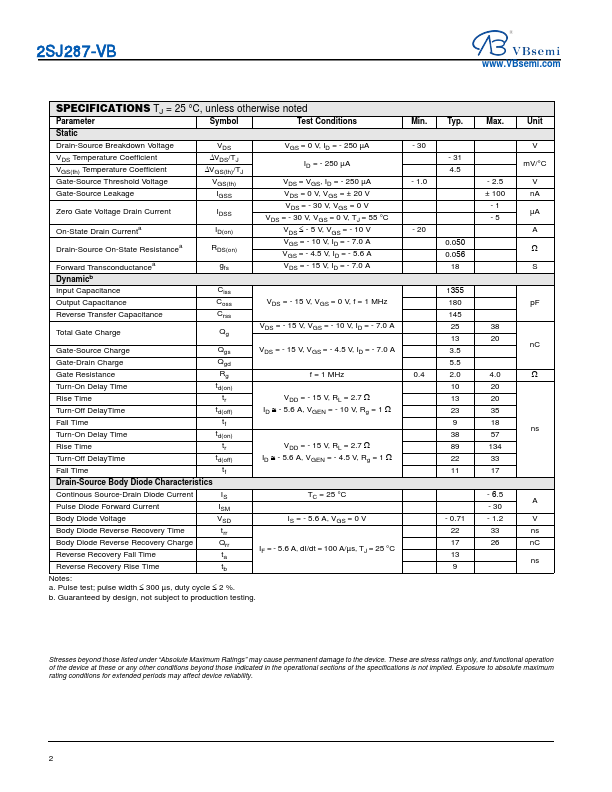

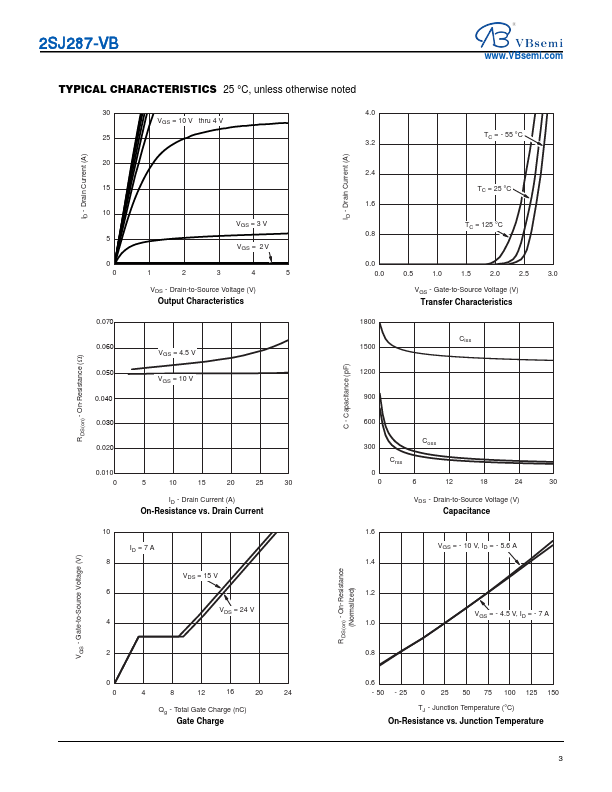

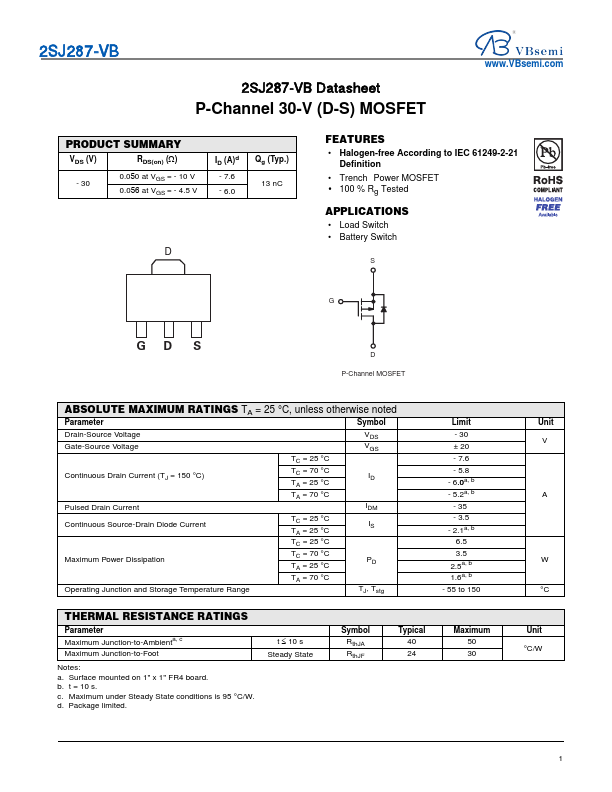

2SJ287-VB 2SJ287-VB Datasheet P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.050 at VGS = - 10 V 0.056 at VGS = - 4.5 V ID (A)d - 7.6 - 6.0 Qg (Typ.
