2SJ360-VB

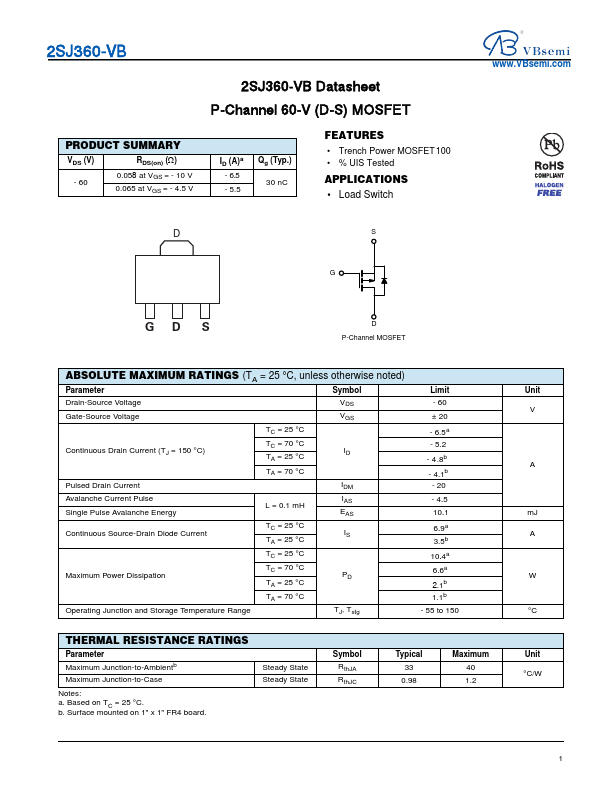

2SJ360-VB Datasheet P-Channel 60-V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V)
RDS(on) ()
- 60
0.058 at VGS = - 10 V
0.065 at VGS = - 4.5 V
ID (A)a - 6.5 - 5.5
Qg (Typ.) 30 nC
FEATURES • Trench Power MOSFET 100 • % UIS Tested APPLICATIONS • Load Switch
D
S
G
www.VBsemi.com
GD S
D P-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted)
Parameter
Symbol
Drain-Source Voltage
VDS
Gate-Source Voltage
VGS
TC = 25 °C
Continuous Drain Current (TJ = 150 °C)
TC = 70 °C TA = 25 °C
ID
TA = 70 °C
Pulsed Drain Current
IDM
Avalanche Current Pulse Single Pulse Avalanche Energy
L = 0.
