2SJ360 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-60V.
  • ID =-1 A.
  • RDS(ON) ＜ 0.73Ω (VGS =-10V).
  • RDS(ON) ＜ 1.2Ω (VGS =-4V).
  • High forward transfer admittance D G S 1.70 0.1 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Drain.
  • Gate voltage (RGS = 20 k Ω) Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance, Channel to Ambient Junction Temperature Junction Storage Temperature Range Sym.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ360 P-Channel MOSFET Toshiba Semiconductor
2SJ360 60V P-Channel MOSFET VBsemi
2SJ361 P-Channel MOSFET Hitachi Semiconductor
2SJ362 P-Channel MOSFET Sanyo Semicon Device
2SJ363 P-Channel MOSFET Hitachi Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SJ3001 P-Channel MOSFET
2SJ3001DS P-Channel Enhancement MOSFET
2SJ302 Mos Field Effect Power Transistor
2SJ302-ZJ P-Channel MOSFET
2SJ3021 P-Channel Enhancement MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

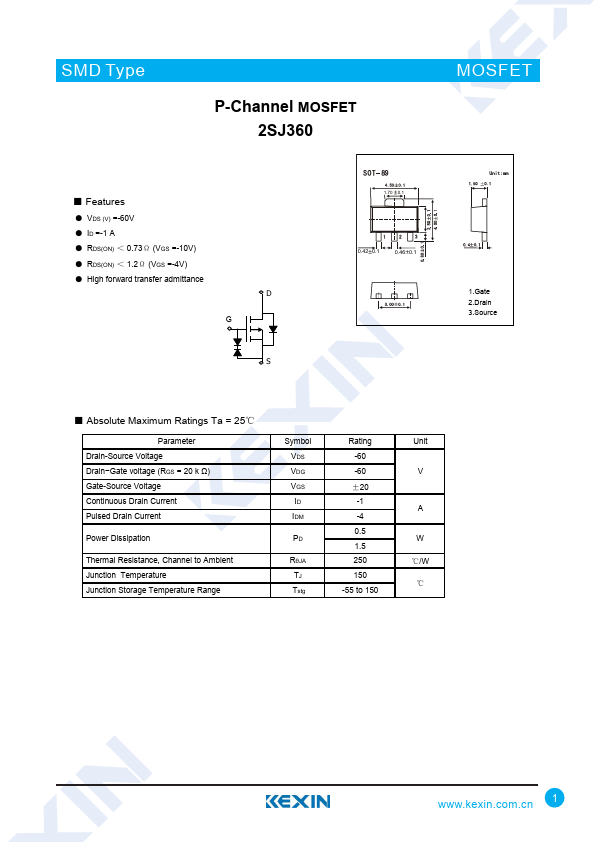

SMD Type P-Channel MOSFET 2SJ360 MOSFET ■ Features ● VDS (V) =-60V ● ID =-1 A ● RDS(ON) ＜ 0.73Ω (VGS =-10V) ● RDS(ON) ＜ 1.2Ω (VGS =-4V) ● High forward transfer admittance D G S 1.70 0.1 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Drain−Gate voltage (RGS = 20 k Ω) Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance, Channel to Ambient Junction Temperature Junction Storage Temperature Range Symbol VDS VDG VGS ID IDM PD RθJA TJ Tstg Rating -60 -60 ±20 -1 -4 0.5 1.5 250 150 -55 to 150 Unit V A W ℃/W ℃ www.kexin.com.
