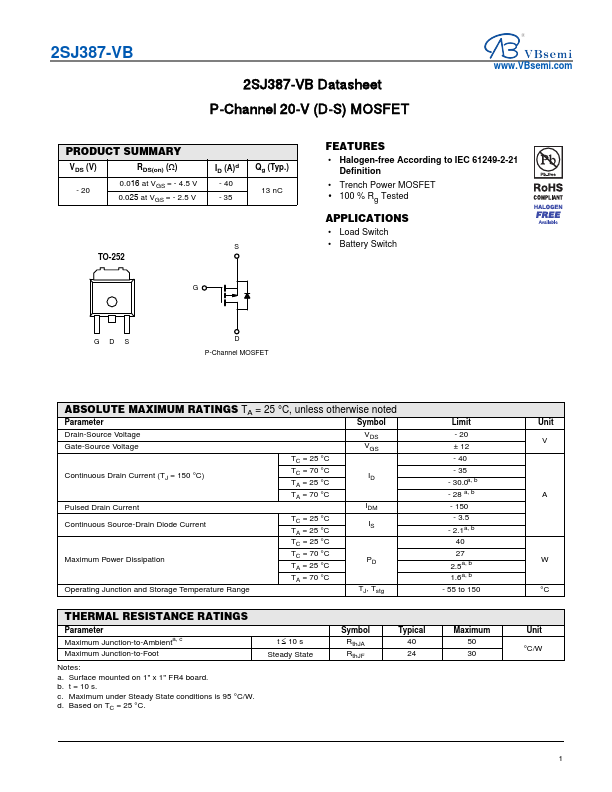

2SJ387
2SJ387 is 20V P-Channel MOSFET manufactured by VBsemi.
FEATURES
- Halogen-free According to IEC 61249-2-21
Definition
- Trench Power MOSFET
- 100 % Rg Tested
APPLICATIONS
- Load Switch
- Battery Switch
GD S
D P-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted
Parameter
Symbol
Drain-Source Voltage
Gate-Source Voltage
TC = 25 °C
Continuous Drain Current (TJ = 150 °C)
TC = 70 °C TA = 25 °C
Pulsed Drain Current
TA = 70 °C IDM
Continuous Source-Drain Diode Current
TC = 25 °C TA = 25 °C
TC = 25 °C
Maximum Power Dissipation
TC = 70 °C TA = 25 °C
Operating Junction and Storage Temperature Range
TA = 70 °C
TJ, Tstg
Limit
- 20 ± 12
- 40
- 35
- 30.0a, b
- 28 a, b
-...
