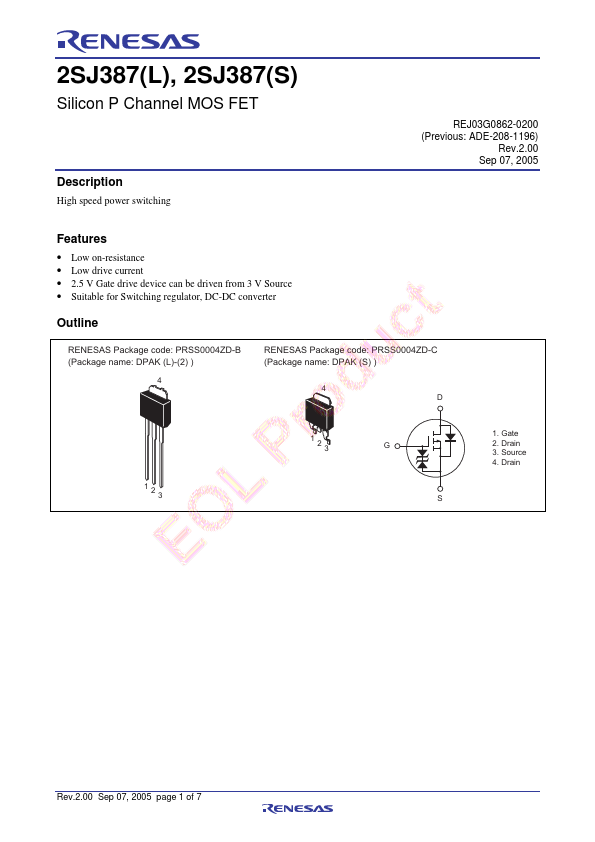

Description High speed power switching REJ03G0862-0200 (Previous: ADE-208-1196) Rev.2.00 Sep 07, 2005 Features - Low on-resistance - Low drive current - 2.5 V Gate drive device can be driven from 3 V Source - Suitable for Switching regulator, DC-DC converter Outline RENESAS Package code: PRSS0004ZD-B (Package name: DPAK (L)-(2) ) RENESAS Package code: PRSS0004ZD-C (Package name: DPAK (S) ) 4 D 1. Gate 2. Drain 3. Source 4. Drain Rev.2.00 Sep 07, 2005 page 1 of 7 2SJ387(L), 2SJ387(S) Absolute Maximum Ratings Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temperature Notes: 1. PW ≤ 10 µs, duty cycle ≤ 1% 2. Value at Tc = 25°C Symbol VDSS VGSS ID ID (pulse) Note 1 IDR Pch Note 2 Tch Tstg Value - 20 ±10 - 10 - 40 - 10 20 150 - 55 to +150 (Ta = 25°C) Unit V V A A A W °C °C Electrical Characteristics Item Drain to source breakdown voltage Gate to source breakdown voltage Gate to source leak current Zero gate voltage drain current Gate to source cutoff voltage Static drain to source on state resistance Forward transfer admittance Input capacitance Output capacitance Reverse transfer capacitance Turn-on delay time Rise time Turn-off delay time Fall time Body to drain diode forward voltage Body to drain diode reverse recovery time Note: 3. Pulse test Symbol V (BR) DSS V (BR) GSS IGSS IDSS VGS (off) RDS (on) RDS (on) |yfs| Ciss Coss Crss td (on) tr td (off) tf VDF trr Min - 20...
