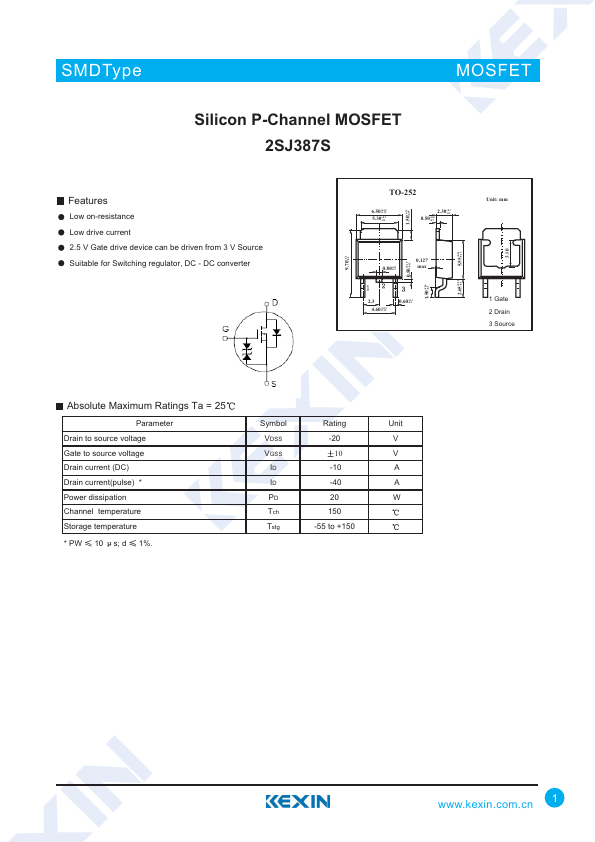

2SJ387S
2SJ387S is Silicon P-Channel MOSFET manufactured by Kexin Semiconductor.
Features
Low on-resistance Low drive current 2.5 V Gate drive device can be driven from 3 V Source Suitable for Switching regulator, DC
- DC converter
+0.2 9.70 -0.2
TO-252
6.50+0.15 -0.15
5.30+0.2 -0.2
2.30+0.1 -0.1
0.50+0.8 -0.7
Unit: mm
+0.15 1.50 -0.15
+0.15 5.55 -0.15
0.80+0.1 -0.1
0.127 max
2.3 4.60+0.15
-0.15
0.60+0.1 -0.1
+0.15 0.50 -0.15
+0.28 1.50 -0.1
+0.25 2.65 -0.1
1 Gate 2 Drain 3 Source
Absolute Maximum Ratings Ta = 25
Parameter Drain to source voltage Gate to source voltage Drain current (DC) Drain current(pulse)
- Power dissipation Channel temperature Storage temperature
Symbol
Rating
Unit
VDSS
-20
VGSS
-10
-40...
