2SJ607 - 60V P-Channel MOSFET

Key Features

  • Trench Power MOSFET.
  • Compliant to RoHS Directive 2002/95/EC.

📥 Download Datasheet

Datasheet Details

Part number 2SJ607
Manufacturer VBsemi
File Size 249.86 KB
Description 60V P-Channel MOSFET
Datasheet download datasheet 2SJ607 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ607 MOS FIELD EFFECT TRANSISTOR NEC
2SJ607 MOS Field Effect Transistor Kexin
2SJ607-ZJ P-Channel MOSFET Kexin
2SJ600 P-Channel Power MOSFET NEC
2SJ600 MOSFET Kexin

Other Datasheets by VBsemi

Part Number Description
2SJ607-Z 60V P-Channel MOSFET
2SJ601 60V P-Channel MOSFET
2SJ602 60V P-Channel MOSFET
2SJ603 60V P-Channel MOSFET
2SJ604 60V P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

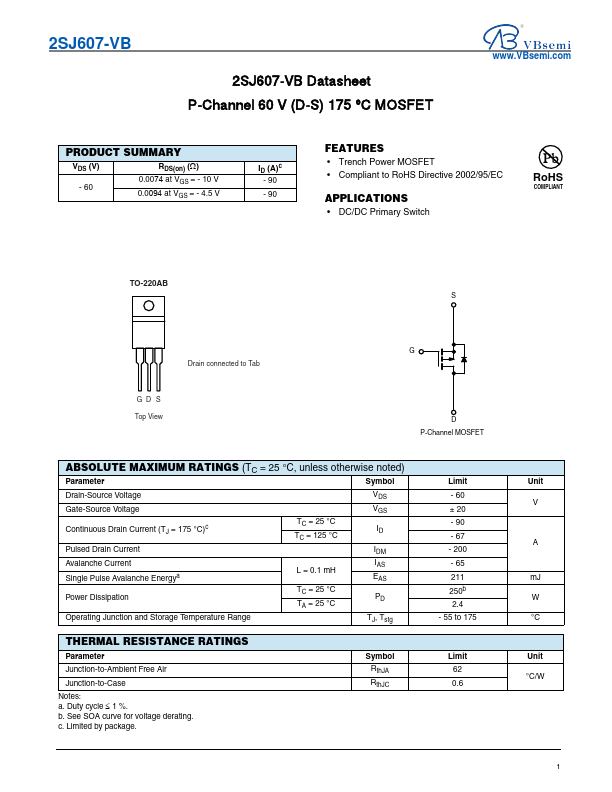

2SJ607-VB 2SJ607-VB Datasheet P-Channel 60 V (D-S) 175 °C MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () - 60 0.0074 at VGS = - 10 V 0.0094 at VGS = - 4.5 V ID (A)c - 90 - 90 FEATURES • Trench Power MOSFET • Compliant to RoHS Directive 2002/95/EC APPLICATIONS • DC/DC Primary Switch RoHS COMPLIANT TO-220AB S G Drain connected to Tab GD S Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C)c TC = 25 °C TC = 125 °C ID Pulsed Drain Current Avalanche Current Single Pulse Avalanche Energya IDM IAS L = 0.
