DMP2004DWK-7 - 20V Dual P-Channel MOSFET

Key Features

  • Halogen-free According to IEC 61249-2-21 Definition.
  • Trench Power MOSFET.
  • 100 % Rg Tested.
  • Compliant to RoHS Directive 2002/95/EC SC-70=-6 S1 1 6 D1 G1 2 5 G2 D2 3 4 S2 Top View S1 G1 S2 G2 D1 P-Channel MOSFET D2 P-Channel MOSFET.

📥 Download Datasheet

Datasheet Details

Part number DMP2004DWK-7
Manufacturer VBsemi
File Size 227.75 KB
Description 20V Dual P-Channel MOSFET
Datasheet download datasheet DMP2004DWK-7 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMP2004DWK Dual P-Channel MOSFET Diodes
DMP2004DWK Dual P-Channel MOSFET Kexin
DMP2004DMK Dual P-Channel MOSFET Diodes
DMP2004K P-Channel MOSFET Diodes
DMP2004TK P-Channel MOSFET Diodes

Other Datasheets by VBsemi

Part Number Description
DMP2022LSS-13 P-Channel 20V MOSFET
DMP2305UQ-7 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

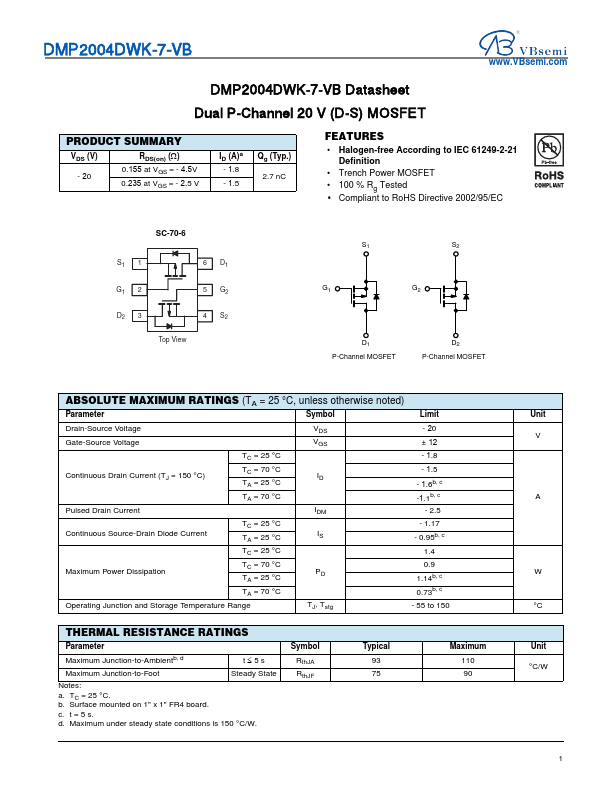

DMP2004DWK-7-VB www.VBsemi.com DMP2004DWK-7-VB Datasheet Dual P-Channel 20 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) - 20 RDS(on) () 0.155 at VGS = - 4.5V 0.235 at VGS = - 2.5 V ID (A)a - 1.8 - 1.5 Qg (Typ.) 2.
