SI9926BDY-T1-E3 - 20V Dual N-Channel MOSFET

Key Features

  • Halogen-free According to IEC 61249-2-21 Definition.
  • Trench Power MOSFET.
  • 100 % Rg Tested.
  • Compliant to RoHS Directive 2002/95/EC S1 1 G1 2 S2 3 G2 4 SO-8 Top View 8 D1 7 D1 6 D2 5 D2 D1 D2 G1 G2 S1 N-Channel MOSFET S2 N-Channel MOSFET.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI9926BDY Dual N-Channel 2.5-V (G-S) MOSFET Vishay Siliconix
SI9926BDY Dual N-Channel MOSFET Kexin
Si9926 Dual N-Channel MOSFET Nanxin
SI9926 Dual N-Channel MOSFET KEXIN
SI9926ADY Dual N-Channel 2.5-V (G-S) MOSFET Vishay Siliconix

Other Datasheets by VBsemi

Part Number Description
SI9948DY-NL Dual P-Channel 60V MOSFET
SI9407BDY-T1-GE3 P-Channel MOSFET
SI9435DY-T1-E3 30V P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

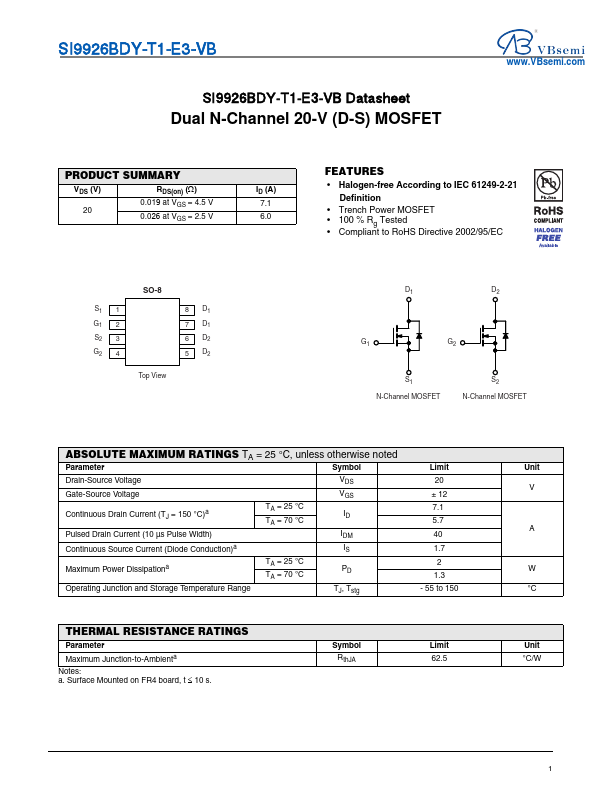

SI9926BDY-T1-E3-VB SI9926BDY-T1-E3-VB Datasheet Dual N-Channel 20-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 20 0.019 at VGS = 4.5 V 0.026 at VGS = 2.5 V ID (A) 7.1 6.
