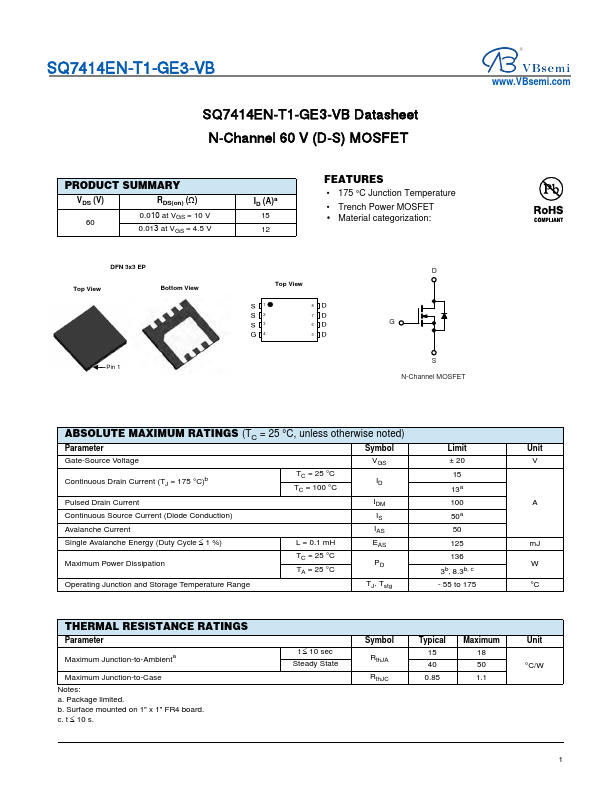

SQ7414EN-T1-GE3
SQ7414EN-T1-GE3 is N-Channel 60V MOSFET manufactured by VBsemi.
FEATURES
- 175 °C Junction Temperature
- Trench Power MOSFET
- Material categorization:
Top View
N-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted)
Parameter
Symbol
Limit
Unit
Gate-Source Voltage
± 20
Continuous Drain Current (TJ = 175 °C)b
TC = 25 °C TC = 100 °C
15 13a
Pulsed Drain Current
Continuous Source Current (Diode Conduction)
50a
Avalanche Current
Single Avalanche Energy (Duty Cycle 1 %)
L = 0.1 m H
125 m J
Maximum Power Dissipation
TC = 25 °C TA = 25 °C
136 3b, 8.3b, c
Operating Junction and Storage Temperature Range
TJ, Tstg
- 55 to...
