PCD1005 - SMD Power Inductor

Download the PCD1005 datasheet PDF. This datasheet also covers the PCD0301 variant, as both devices belong to the same smd power inductor family and are provided as variant models within a single manufacturer datasheet.

Key Features

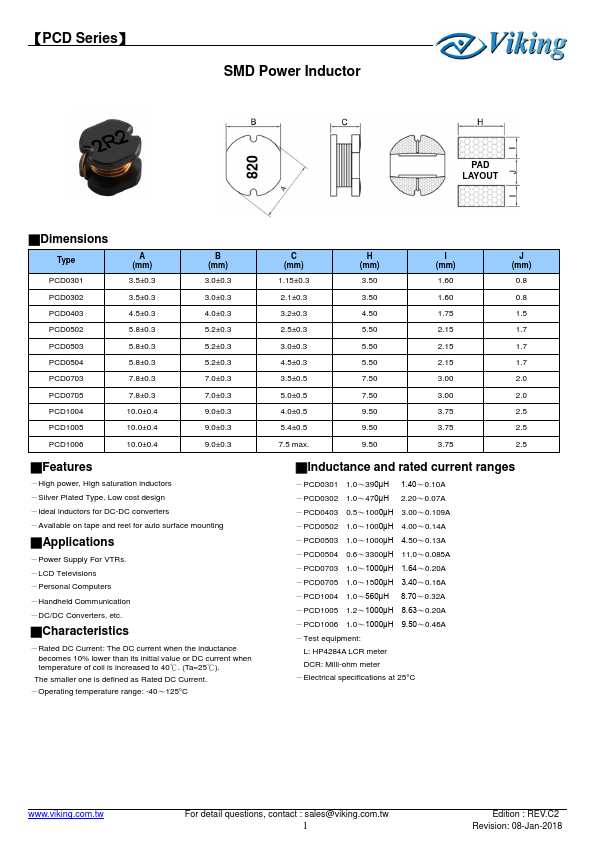

  • ion inductors －Silver Plated Type, Low cost design －Ideal inductors for DC-DC converters －Available on tape and reel for auto surface mounting.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PCD0301-VIKINGTECH.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PCD1005
Manufacturer VIKING TECH
File Size 944.67 KB
Description SMD Power Inductor
Datasheet download datasheet PCD1005 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PCD103D1xx (PCD Series) 15A Low Profile Power PC Board Relay OEG
PCD105D1xx (PCD Series) 15A Low Profile Power PC Board Relay OEG
PCD106D1xx (PCD Series) 15A Low Profile Power PC Board Relay OEG
PCD109D1xx (PCD Series) 15A Low Profile Power PC Board Relay OEG
PCD112D1xx (PCD Series) 15A Low Profile Power PC Board Relay OEG

Other Datasheets by VIKING TECH

Part Number Description
PCD1004 SMD Power Inductor
PCD1006 SMD Power Inductor
PCD0301 SMD Power Inductor
PCD0302 SMD Power Inductor
PCD0403 SMD Power Inductor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

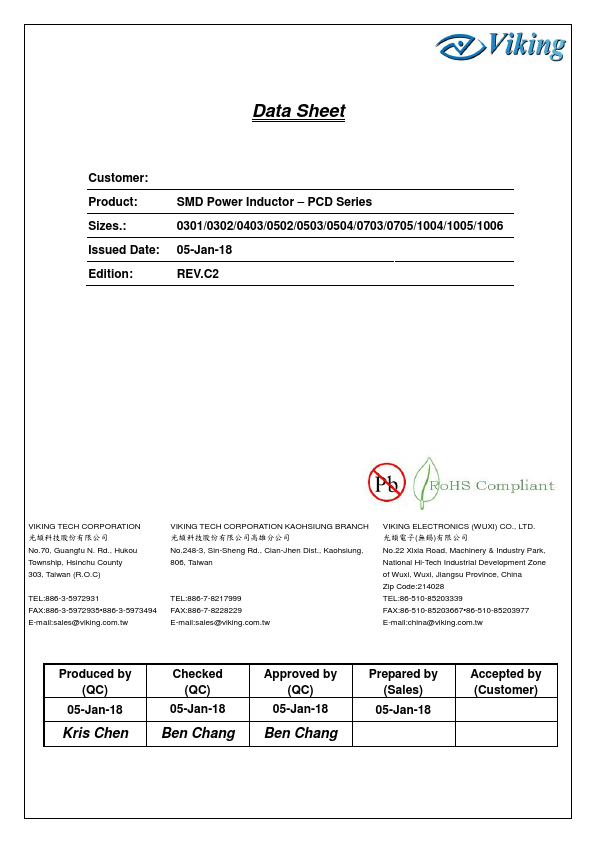

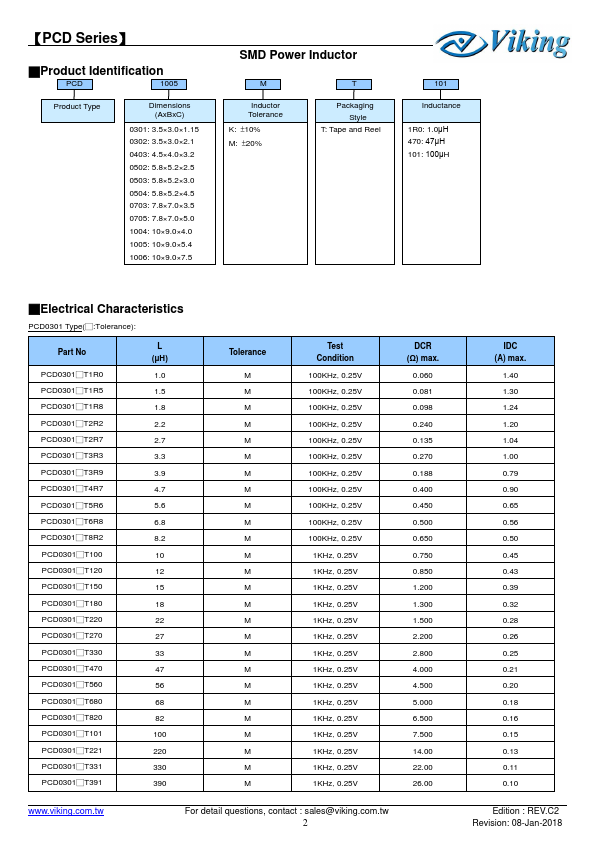

Data Sheet Customer: Product: SMD Power Inductor – PCD Series Sizes.: 0301/0302/0403/0502/0503/0504/0703/0705/1004/1005/1006 Issued Date: 05-Jan-18 Edition: REV.C2 VIKING TECH CORPORATION No.70, Guangfu N. Rd., Hukou Township, Hsinchu County 303, Taiwan (R.O.C) TEL:886-3-5972931 FAX:886-3-5972935•886-3-5973494 E-mail:sales@viking.com.tw VIKING TECH CORPORATION KAOHSIUNG BRANCH No.248-3, Sin-Sheng Rd., Cian-Jhen Dist., Kaohsiung, 806, Taiwan TEL:886-7-8217999 FAX:886-7-8228229 E-mail:sales@viking.com.tw VIKING ELECTRONICS (WUXI) CO., LTD. () No.22 Xixia Road, Machinery & Industry Park, National Hi-Tech Industrial Development Zone of Wuxi, Wuxi, Jiangsu Province, China Zip Code:214028 TEL:86-510-85203339 FAX:86-510-85203667•86-510-85203977 E-mail:china@viking.com.
