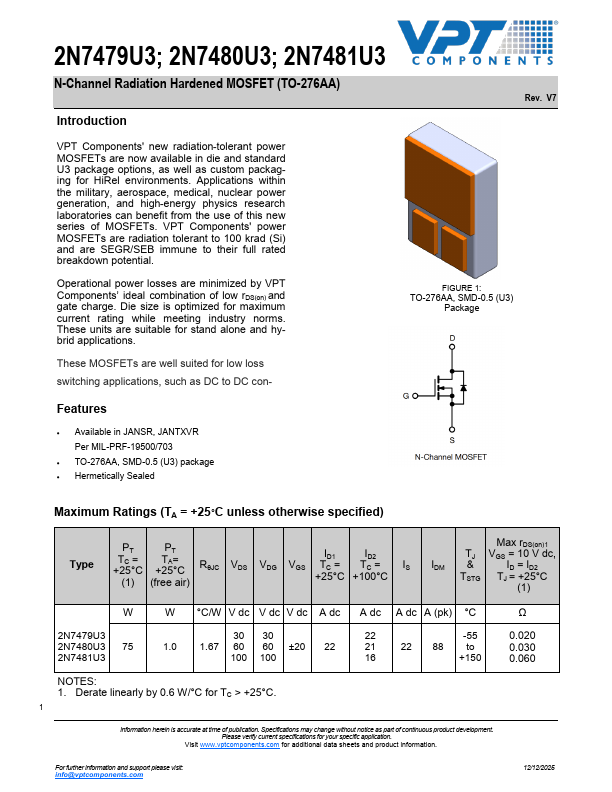

2N7479U3
2N7479U3 is N-Channel Radiation Hardened MOSFET manufactured by VPT Components.
Features
- Available in JANSR, JANTXVR Per MIL-PRF-19500/703
- TO-276AA, SMD-0.5 (U3) package
- Hermetically Sealed
Rev. V7
FIGURE 1: TO-276AA, SMD-0.5 (U3)
Package
Maximum Ratings (TA = +25°C unless otherwise specified)
Type
TC =
TA=
+25°C +25°C
(1) (free air)
RθJC
ID1
ID2
VGS TC = TC =
+25°C +100°C
Max r DS(on)1
TJ VGS = 10 V dc,
&
ID = ID2
TSTG TJ = +25°C
(1)
W °C/W V dc V dc V dc A dc A dc A dc A (pk) °C
Ω
2N7479U3 2N7480U3 75 2N7481U3
30 30 1.0 1.67 60 60 ±20 22
100 100
-55
21 22 88...
