4N35 - Optocoupler

Product Overview

Vishay Telefunken

Datasheet Details

Part number	4N35
Manufacturer	Vishay Telefunken
File Size	125.53 KB
Description	Optocoupler
Datasheet	4N35 Datasheet
Additional preview pages of the 4N35 datasheet.

Product details

Description

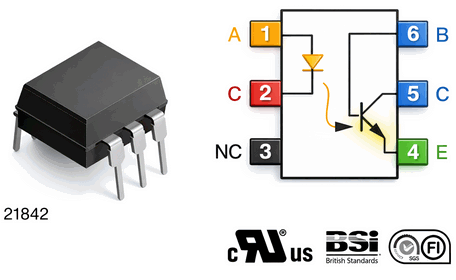

Each optocoupler consists of gallium arsenide infrared LED and a silicon NPN phototransistor. Underwriters laboratory file no. BSI: EN 60065:2002, EN 60950:2000 FIMKO; EN 60065, EN 60335, EN 60950 certificate no.

Features

Isolation test voltage 5000 VRMS.
Interfaces with common logic families.
Input-output coupling capacitance < 0.5 pF.
Industry standard dual-in-line 6 pin package.
Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC.
