1N4148WS - Small Signal Fast Switching Diode

Vishay

Key Features

Silicon epitaxial planar diode.
Fast switching diodes.
AEC-Q101 qualified available.
Base P/N-E3 - RoHS-compliant, commercial grade.
Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

1N4148WS small signal fast switching diode by Vishay - Datasheet Preview

Datasheet Details

Part number	1N4148WS
Manufacturer	Vishay
File Size	93.25 KB
Description	Small Signal Fast Switching Diode
Datasheet	1N4148WS Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
1N4148WS	SURFACE MOUNT FAST SWITCHING DIODE	Diodes Incorporated
1N4148WS	Small Signal Diodes	Fairchild Semiconductor
1N4148WS	200mW High Speed SMD Switching Diode	Taiwan Semiconductor
1N4148WS	SURFACE MOUNT FAST SWITCHING DIODE	LITE-ON
1N4148WS	Switching Diode	GOOD-ARK

Other Datasheets by Vishay

Part Number	Description
1N4148WS-G	Small Signal Fast Switching Diode
1N4148WSFL-G	Small Signal Fast Switching Diode
1N4148W	Small Signal Fast Switching Diode
1N4148W-G	Small Signal Fast Switching Diode
1N4148W-V-G	Small Signal Fast Switching Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

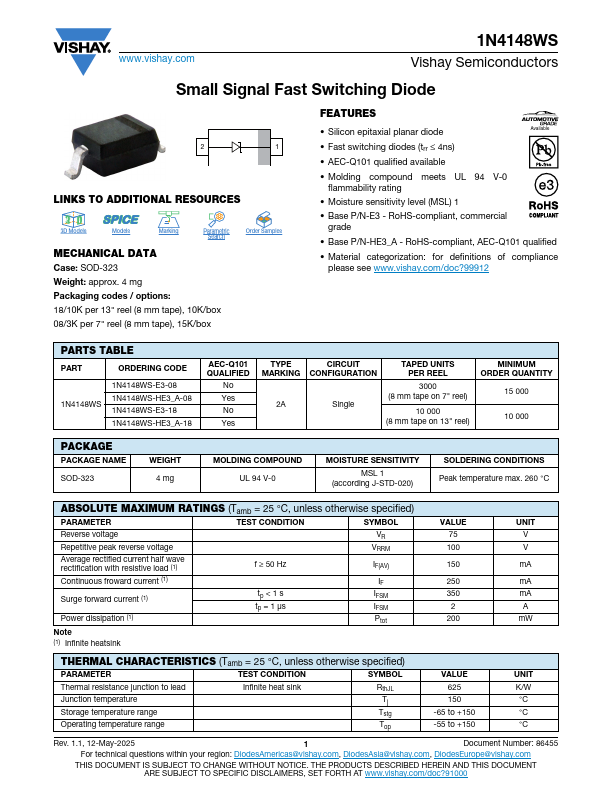

www.vishay.com 1N4148WS Vishay Semiconductors Small Signal Fast Switching Diode MARKING (example only) XY Bar = cathode marking XY = type code 22610 DESIGN SUPPORT TOOLS click logo to get started Models Available FEATURES • Silicon epitaxial planar diode • Fast switching diodes • AEC-Q101 qualified available • Base P/N-E3 - RoHS-compliant, commercial grade • Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 MECHANICAL DATA Case: SOD-323 Weight: approx. 4.
