1N4150W-V - Small Signal Switching Diode

Vishay

Key Features

Silicon Epitaxial Planar Diode.
For general purpose and switching e3.
This diode is also available in other case styles including the DO-35 case with the type des- ignation 1N4150, and the MiniMELF case with the type designation LL4150.
Lead (Pb)-free component.
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC 17431 Mechanical Data Case: SOD-123 Plastic case Weight: approx. 9.3 mg Packaging Codes/Options: GS18 / 10 k per 13".

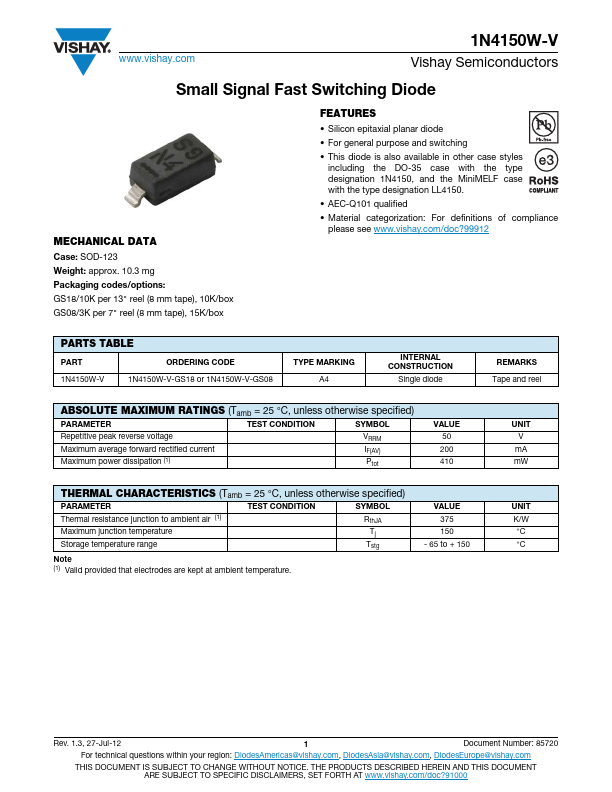

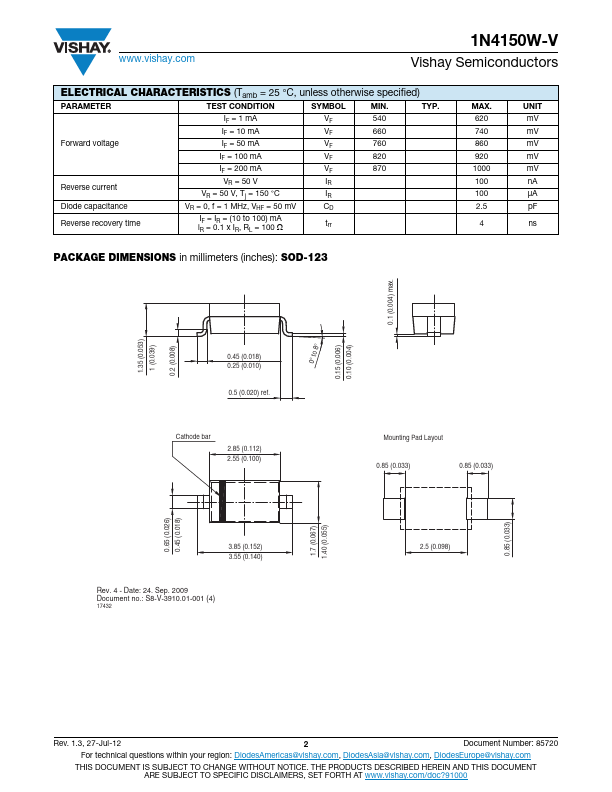

1N4150W-V small signal switching diode by Vishay - Datasheet Preview

Datasheet Details

Part number	1N4150W-V
Manufacturer	Vishay
File Size	96.27 KB
Description	Small Signal Switching Diode
Datasheet	1N4150W-V Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
1N4150W	SURFACE MOUNT FAST SWITCHING DIODE	WON-TOP
1N4150W	SMALL SIGNAL DIODES	Kexin
1N4150W	SURFACE MOUNT FAST SWITCHING DIODE	Sunmate
1N4150W	Small Signal Fast Switching Diode	GME
1N4150W	SURFACE MOUNT FAST SWITCHING DIODE	Sangdest Microelectronics

Other Datasheets by Vishay

Part Number	Description
1N4150W-G	Small Signal Fast Switching Diode
1N4150W	Small Signal Fast Switching Diode
1N4150	Small Signal Fast Switching Diodes
1N4151	Small Signal Fast Switching Diodes
1N4151W	Small Signal Fast Switching Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Small Signal Switching Diode 1N4150W-V Vishay Semiconductors Features • Silicon Epitaxial Planar Diode • For general purpose and switching e3 • This diode is also available in other case styles including the DO-35 case with the type des- ignation 1N4150, and the MiniMELF case with the type designation LL4150. • Lead (Pb)-free component • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC 17431 Mechanical Data Case: SOD-123 Plastic case Weight: approx. 9.
