BAS16 - Small Signal Fast Switching Diode

Vishay

Key Features

Silicon epitaxial planar diode Available.
Ultra fast switching speed (≤ 4 ns).
Surface mount package ideally suited for automatic insertion.
High conductance.
AEC-Q101 qualified available.
Base P/N-E3 - RoHS-compliant, commercial grade.
Base P/N-HE3_A - RoHS-compliant, AEC-Q101 qualified.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 PARTS TABLE PART.

BAS16 small signal fast switching diode by Vishay - Datasheet Preview

Datasheet Details

Part number	BAS16
Manufacturer	Vishay
File Size	117.72 KB
Description	Small Signal Fast Switching Diode
Datasheet	BAS16 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BAS16	High-speed switching diodes	NXP
BAS16	High Speed Switching Diodes	Multicomp
BAS16	FAST SWITCHING DIODE	SMC Diode
BAS16	Silicon Switching Diode	Infineon
BAS16	Switching Diode	GOODARK

Other Datasheets by Vishay

Part Number	Description
BAS16-G	Small Signal Fast Switching Diode
BAS16D	Small Signal Fast Switching Diode
BAS16D-G	Small Signal Fast Switching Diode
BAS16D-V	Small Signal Fast Switching Diode
BAS16WS	Small Signal Fast Switching Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

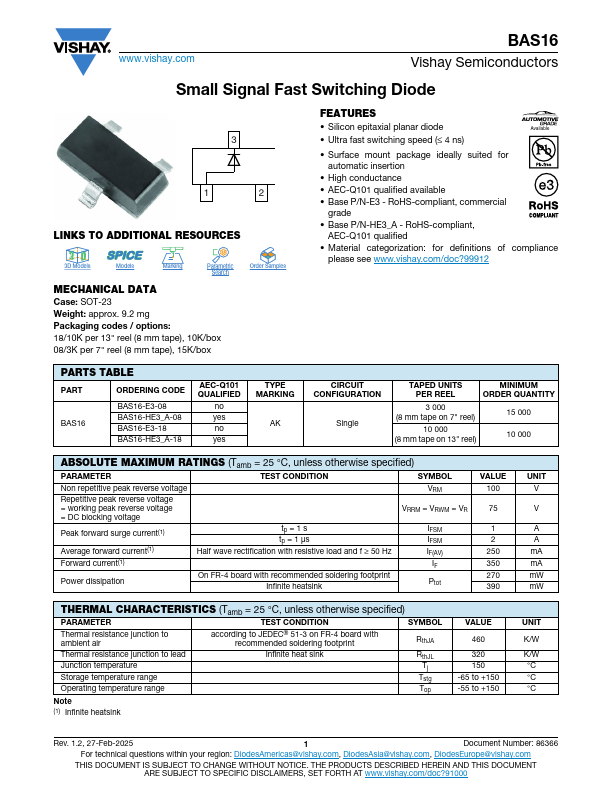

www.vishay.com BAS16 Vishay Semiconductors Small Signal Fast Switching Diode 3 1 2 LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Models Marking Parametric Search Order Samples MECHANICAL DATA Case: SOT-23 Weight: approx. 9.2 mg Packaging codes / options: 18/10K per 13" reel (8 mm tape), 10K/box 08/3K per 7" reel (8 mm tape), 15K/box FEATURES • Silicon epitaxial planar diode Available • Ultra fast switching speed (≤ 4 ns) • Surface mount package ideally suited for automatic insertion • High conductance • AEC-Q101 qualified available • Base P/N-E3 - RoHS-compliant, commercial grade • Base P/N-HE3_A - RoHS-compliant, AEC-Q101 qualified • Material categorization: for definitions of compliance please see www.vishay.
