BAT42W - Small Signal Schottky Diode

Datasheet Summary

Features

  • These diodes feature very low turn-on voltage and fast switching. These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges.
  • For general purpose.

📥 Download Datasheet

Datasheet preview – BAT42W

Datasheet Details

Part number BAT42W
Manufacturer Vishay
File Size 92.91 KB
Description Small Signal Schottky Diode
Datasheet download datasheet BAT42W Datasheet
Additional preview pages of the BAT42W datasheet.

📁 Similar Datasheet

  • BAT42W - Schottky Diodes (General Semiconductor)
  • BAT42W - 200mA Surface Mount Small Signal Diodes (CITC)
  • BAT42W - Surface Mount Schottky Barrier Diodes (JGD)
  • BAT42W - SCHOTTKY DIODES (AiT Components)
  • BAT42W - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (KD)
  • BAT42W - Fast Switching Schottky Barrier Diode (MIC)
  • BAT42W - SURFACE MOUNT SCHOTTKY BARRIER DIODE (WON-TOP)
  • BAT42W - SURFACE MOUNT SCHOTTKY BARRIER DIODE (Diodes)
  • BAT42W - SCHOTTKY BARRIER DIODE (JCET)
  • BAT42W - 200mW Surface Mount Schottky Barrier Diode (Taiwan Semiconductor)
Other Datasheets by Vishay
  • BAT42W-G - Small Signal Schottky Diode
  • BAT42WS - Small Signal Schottky Diode
  • BAT42WS-G - Small Signal Schottky Diode
  • BAT42 - Small Signal Schottky Diode
  • BAT43 - Small Signal Schottky Diode
  • BAT43W - Small Signal Schottky Diode
  • BAT43W-G - Small Signal Schottky Diode
  • BAT43WS - Small Signal Schottky Diode

Full PDF Text Transcription

Click to expand full text

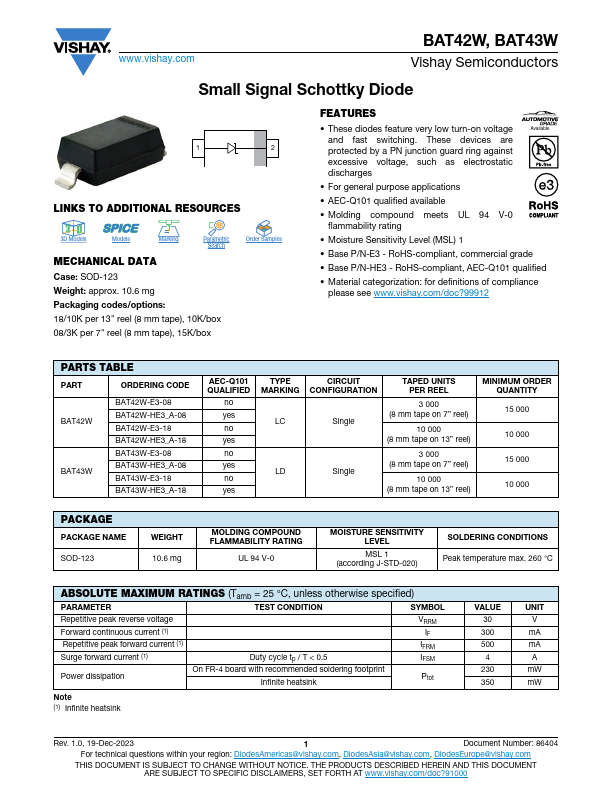

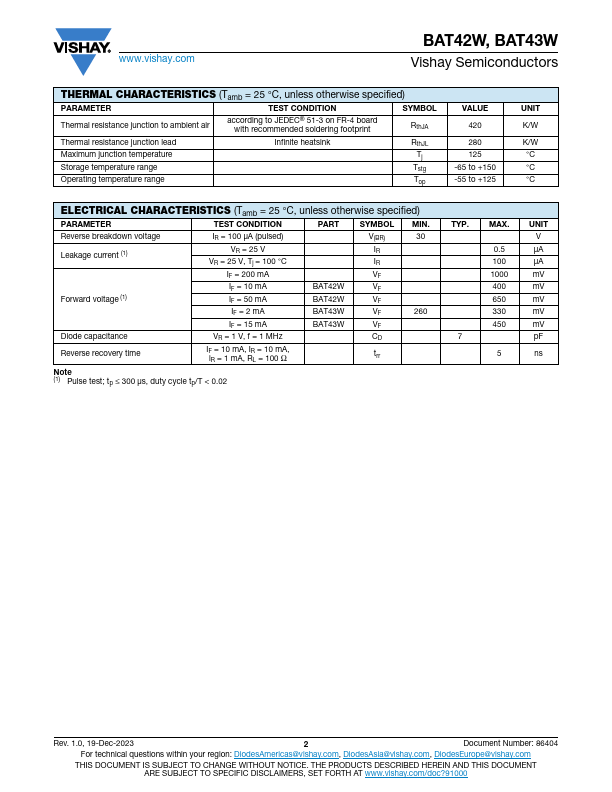

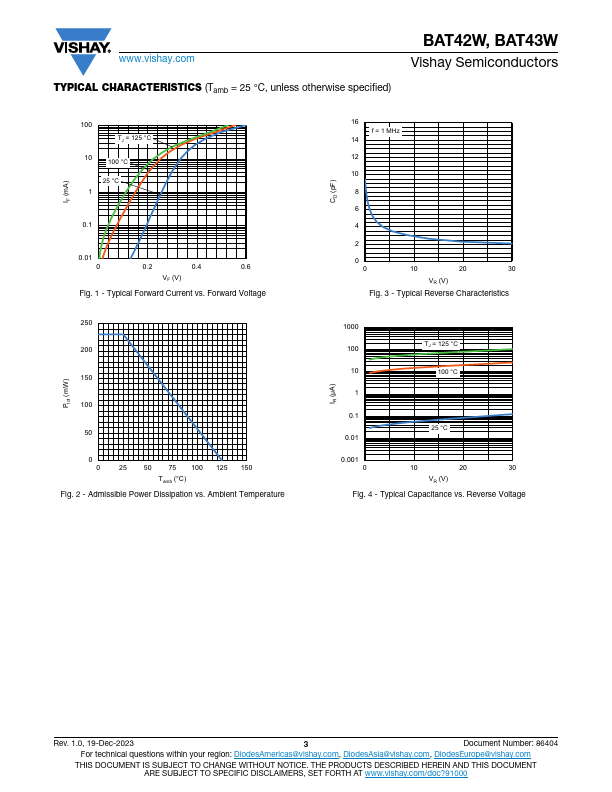

www.vishay.com BAT42W, BAT43W Vishay Semiconductors Small Signal Schottky Diode DESIGN SUPPORT TOOLS click logo to get started Models Available MECHANICAL DATA Case: SOD-123 Weight: approx. 10.3 mg Packaging codes/options: 18/10K per 13" reel (8 mm tape), 10K/box 08/3K per 7" reel (8 mm tape), 15K/box FEATURES • These diodes feature very low turn-on voltage and fast switching. These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges • For general purpose applications • AEC-Q101 qualified available • Base P/N-E3 - RoHS-compliant, commercial grade • Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified • Material categorization: for definitions of compliance please see www.vishay.
