BAT42WS - Small Signal Schottky Diode

Vishay

Key Features

These diodes feature very low turn-on voltage and fast switching. These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges.
For general purpose.

BAT42WS small signal schottky diode by Vishay - Datasheet Preview

Datasheet Details

Part number	BAT42WS
Manufacturer	Vishay
File Size	81.07 KB
Description	Small Signal Schottky Diode
Datasheet	BAT42WS Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BAT42WS	Silicon Diode	BLUE ROCKET ELECTRONICS
BAT42WS	Schottky Diodes	LGE
BAT42WS	SILICON PLANAR SCHOTTKY BARRIER DIODES	CDIL
BAT42WS	SMALL SIGNAL DIODE	Rectron
BAT42WS	SURFACE MOUNT SCHOTTKY BARRIER DIODE	SEMTECH

Other Datasheets by Vishay

Part Number	Description
BAT42WS-G	Small Signal Schottky Diode
BAT42W	Small Signal Schottky Diode
BAT42W-G	Small Signal Schottky Diode
BAT42	Small Signal Schottky Diode
BAT43	Small Signal Schottky Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

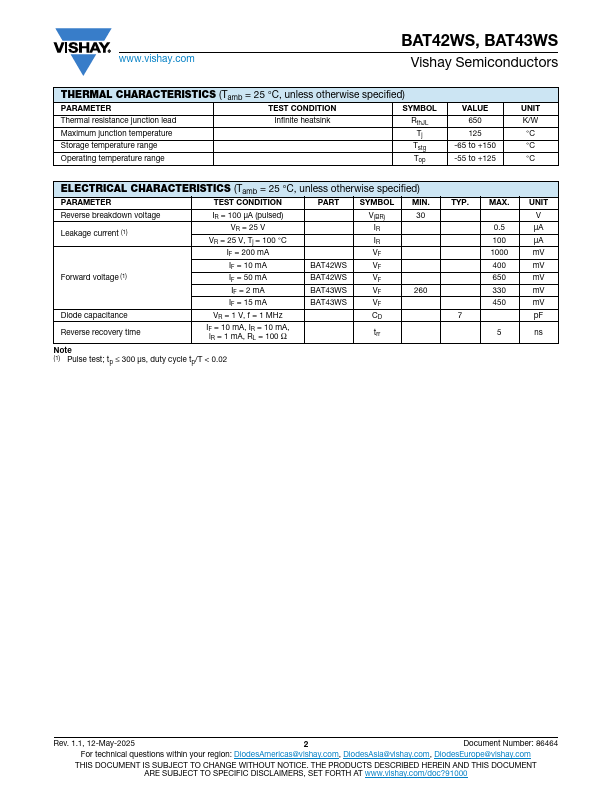

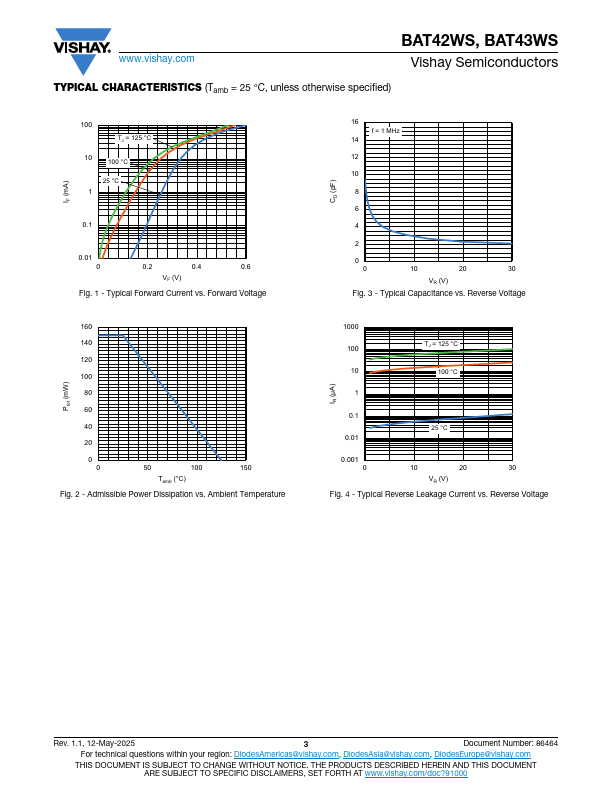

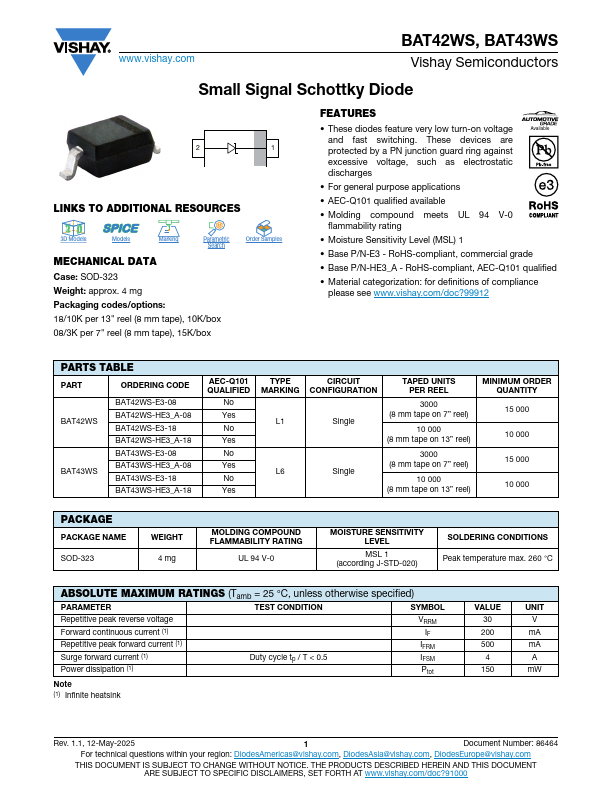

www.vishay.com BAT42WS, BAT43WS Vishay Semiconductors Small Signal Schottky Diode DESIGN SUPPORT TOOLS click logo to get started Models Available MECHANICAL DATA Case: SOD-323 Weight: approx. 4.3 mg Packaging codes/options: 18/10K per 13" reel (8 mm tape), 10K/box 08/3K per 7" reel (8 mm tape), 15K/box FEATURES • These diodes feature very low turn-on voltage and fast switching. These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges • For general purpose applications • AEC-Q101 qualified available • Base P/N-E3 - RoHS-compliant, commercial grade • Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified • Material categorization: for definitions of compliance please see www.vishay.
