MBRB30H100CT - Dual Common-Cathode High-Voltage Schottky Rectifier

Download the MBRB30H100CT datasheet PDF. This datasheet also covers the MBRB30H90CT variant, as both devices belong to the same dual common-cathode high-voltage schottky rectifier family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Power pack.
  • Guardring for overvoltage protection.
  • Low power loss, high efficiency.
  • Low forward voltage drop.
  • Low leakage current.
  • High forward surge capability.
  • High frequency operation.
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package).
  • Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for TO-220AB and ITO-220AB package).
  • Material categorization: for definiti.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MBRB30H90CT-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MBRB30H100CT
Manufacturer Vishay
File Size 154.85 KB
Description Dual Common-Cathode High-Voltage Schottky Rectifier
Datasheet download datasheet MBRB30H100CT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBRB30H30CT-1 SWITCHMODE Power Rectifier ON Semiconductor
MBRB30H30CT-1G Power Rectifiers ON Semiconductor
MBRB30H35CT Dual Common Cathode Schottky Rectifier Vishay Siliconix
MBRB30H60CT-1G SWITCHMODE Power Rectifier ON Semiconductor
MBRB30H60CTT4G SWITCHMODE Power Rectifier ON Semiconductor

Other Datasheets by Vishay

Part Number Description
MBRB30H45CT Dual Common Cathode Schottky Rectifier
MBRB30H50CT Dual Common Cathode Schottky Rectifier
MBRB30H60CT Dual Common Cathode Schottky Rectifier
MBRB30H90CT Dual Common-Cathode High-Voltage Schottky Rectifier
MBRB10100-M3 High-Voltage Trench MOS Barrier Schottky Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

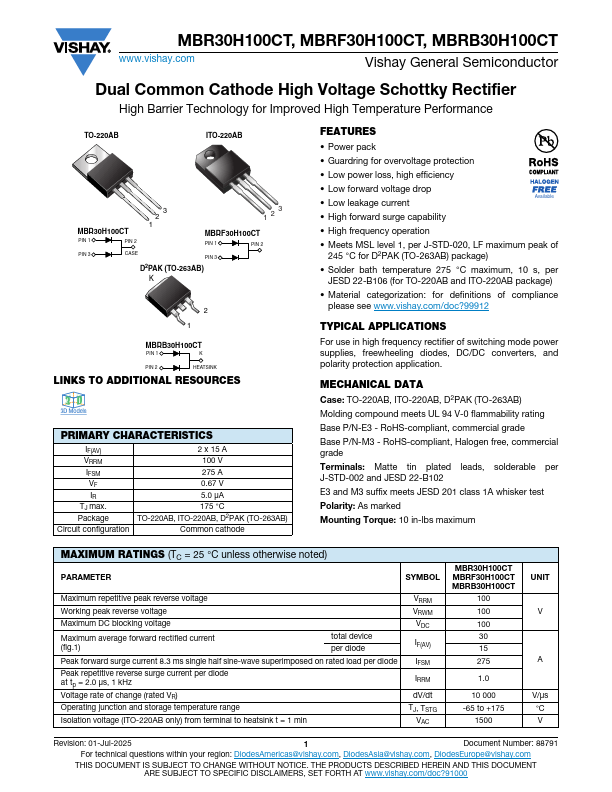

MBR30H100CT, MBRF30H100CT, MBRB30H100CT www.vishay.com Vishay General Semiconductor Dual Common Cathode High Voltage Schottky Rectifier High Barrier Technology for Improved High Temperature Performance TO-220AB ITO-220AB MBR30H100CT PIN 1 PIN 2 3 2 1 123 MBRF30H100CT PIN 1 PIN 2 PIN 3 CASE PIN 3 D2PAK (TO-263AB) K 2 1 MBRB30H100CT PIN 1 K PIN 2 HEATSINK DESIGN SUPPORT TOOLS click logo to get started Models Available PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF IR TJ max. Package 2 x 15 A 100 V 275 A 0.67 V 5.
