Datasheet Details
| Part number | MBRF30H100CT |
|---|---|
| Manufacturer | Vishay |
| File Size | 154.85 KB |
| Description | Dual Common-Cathode High-Voltage Schottky Rectifier |
| Datasheet | MBRF30H100CT MBRB30H90CT Datasheet (PDF) |
|
|

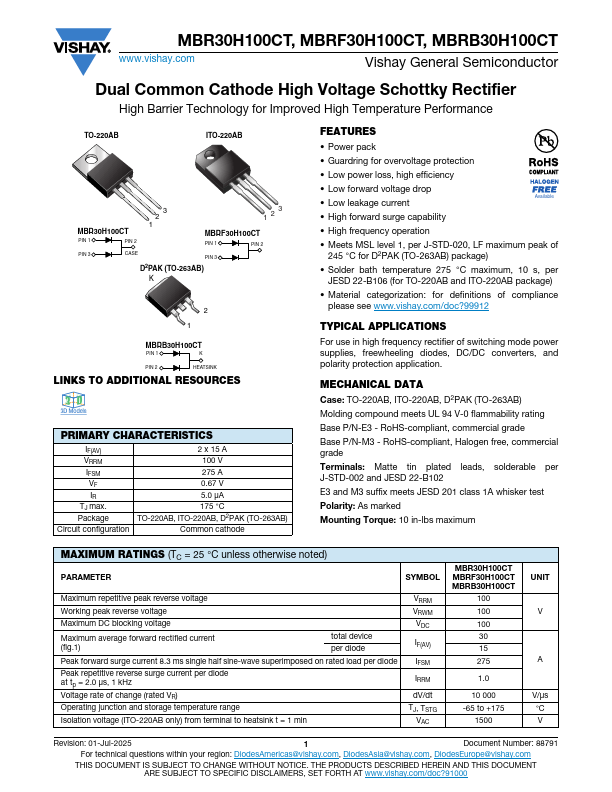

Overview: MBR30H100CT, MBRF30H100CT, MBRB30H100CT www.vishay.com Vishay General Semiconductor Dual Common Cathode High Voltage Schottky Rectifier High Barrier Technology for Improved High Temperature Performance TO-220AB ITO-220AB MBR30H100CT PIN 1 PIN 2 3 2 1 123 MBRF30H100CT PIN 1 PIN 2 PIN 3 CASE PIN 3 D2PAK (TO-263AB) K 2 1 MBRB30H100CT PIN 1 K PIN 2 HEATSINK DESIGN SUPPORT TOOLS click logo to get started Models Available PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF IR TJ max. Package 2 x 15 A 100 V 275 A 0.67 V 5.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | MBRF30H100CT |
|---|---|
| Manufacturer | Vishay |
| File Size | 154.85 KB |
| Description | Dual Common-Cathode High-Voltage Schottky Rectifier |
| Datasheet | MBRF30H100CT MBRB30H90CT Datasheet (PDF) |
|
|
|
