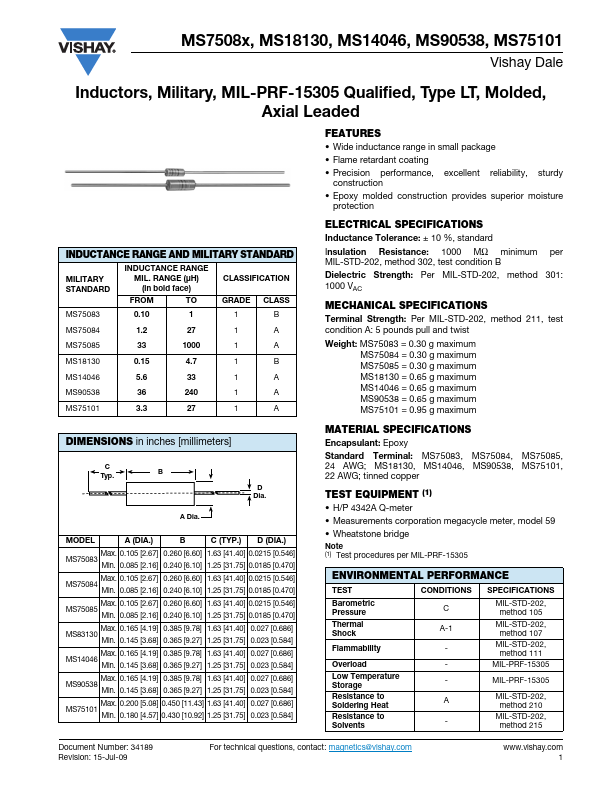

MS7508x, MS18130, MS14046, MS90538, MS75101
Vishay Dale
Inductors, Military, MIL-PRF-15305 Qualified, Type LT, Molded, Axial Leaded
FEATURES • Wide inductance range in small package
• Flame retardant coating
• Precision performance, excellent reliability, sturdy construction
• Epoxy molded construction provides superior moisture protection
INDUCTANCE RANGE AND MILITARY STANDARD
MILITARY STANDARD
INDUCTANCE RANGE MIL. RANGE (μH) (in bold face)
CLASSIFICATION
FROM
TO
GRADE CLASS
MS75083
0.10
1
1
B
MS75084
1.2
27
1
A
MS75085
33
1000
1
A
MS18130
0.15
4.7
1
B
MS14046
5.6
33
1
A
MS90538
36
240
1
A
MS75101
3.
