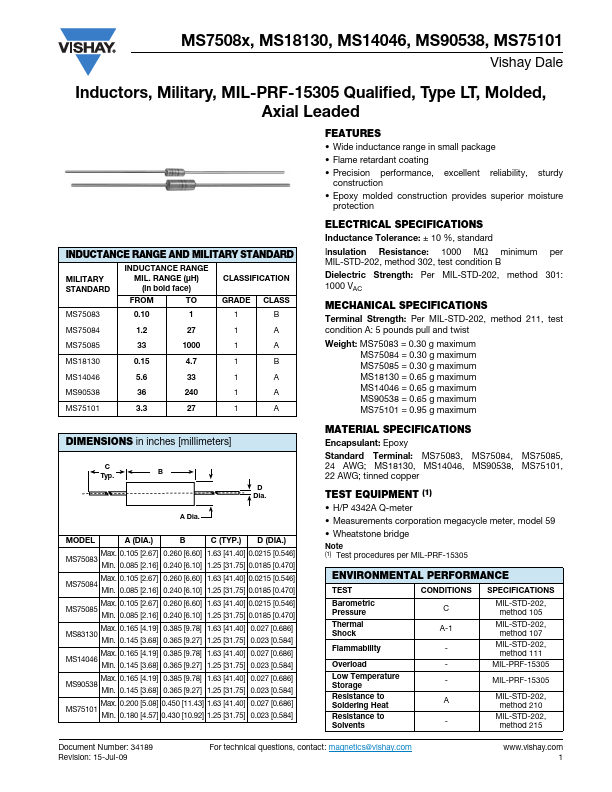

Vishay MS75084
Inductors
| Part No. | MS75084 |
|---|---|
| Datasheet | MS75084 Download |
| Manufacturer |  Vishay |
| Description | Inductors |
| Buy | Stock & Price |
FEATURES
● Wide inductance range in small package● Flame retardant coating
● Precision performance, excellent reliability, sturdy construction
● Epoxy molded construction provides superior moisture protection INDUCTANCE RANGE AND MILITARY STANDARD MILITARY STANDARD INDUCTANCE RANGE MIL. RANGE (μH) (in bold face) CLASSIFICATION FROM TO GRADE CLASS MS75083 0.10 1 1 B MS75084 1.2 27 1 A MS75085 33 1000 1 A MS18130 0.15 4.7 1 B MS14046 5.6 33 1 A MS90538 36 240 1 A MS75101 3.3 27 1 A
ELECTRICAL SPECIFICATIONS
Inductance Tolerance: ± 10 %, standard Insulation Resistance: 1000 MΩ minimum per MIL-STD-202, method 302, test condition B Dielectric Strength: Per MIL-STD-202, method 301: 1000 VAC MECHANICAL SPECIFICATIONS Terminal Strength: Per MIL-STD-202, method 211, test condition A: 5 pounds pull and twist Weight: MS75083 = 0.30 g maximum MS75084 = 0.30 g maximum MS75085 = 0.30 g maximum MS18130 = 0.65 g maximum MS14046 = 0.65 g maximum MS90538 = 0.65 g maximum MS75101 = 0.95 g maximum DIMENSIONS in inches [millimeters] C Typ.
