SD101CWS Datasheet | Vishay

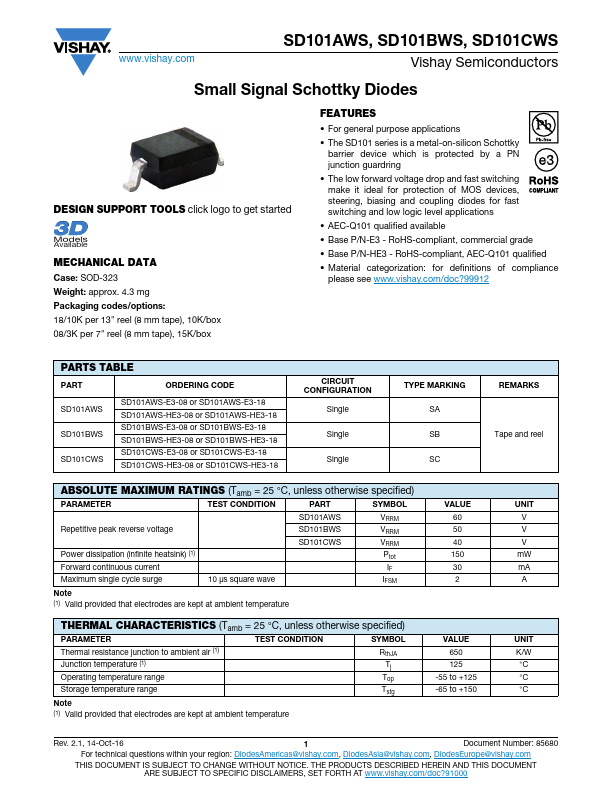

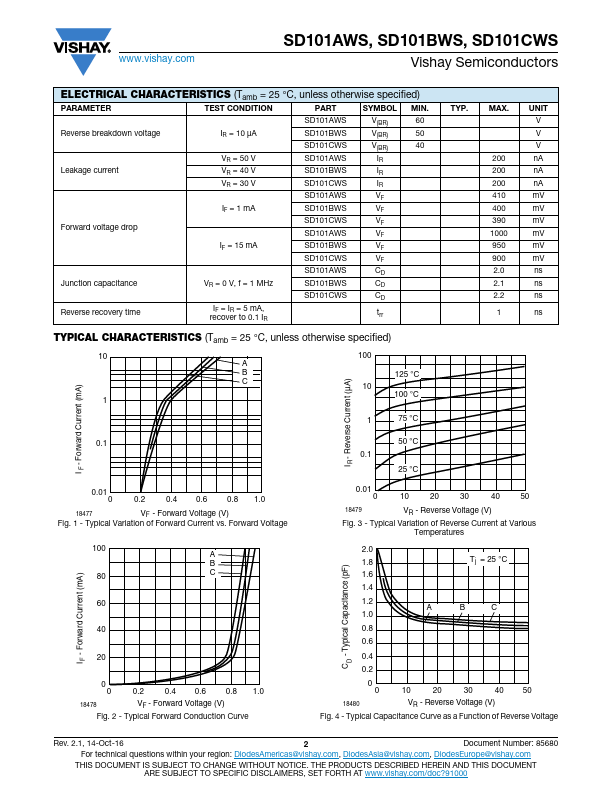

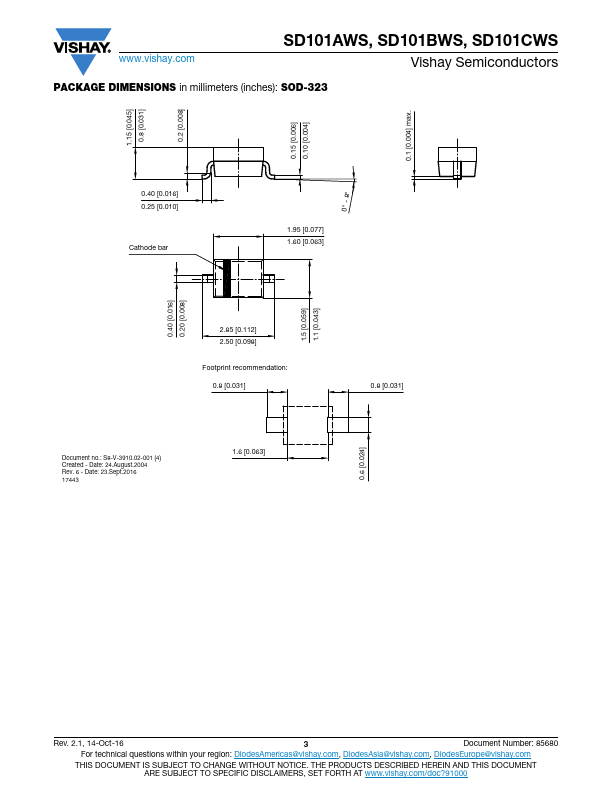

FEATURES - For general purpose applications - The SD101 series is a metal-on-silicon Schottky barrier device which is protected by a PN junction guardring - The low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing and coupling diodes for fast switching and low logic level applications - AEC-Q101 qualified available - Base P/N-E3 - Ro HS-pliant, mercial grade - Base P/N-HE3 - Ro HS-pliant, AEC-Q101 qualified - Material categorization: for definitions of pliance please see .vishay./doc?99912 PARTS TABLE PART ORDERING CODE SD101AWS SD101BWS SD101CWS SD101AWS-E3-08 or SD101AWS-E3-18 SD101AWS-HE3-08 or SD101AWS-HE3-18 SD101BWS-E3-08 or SD101BWS-E3-18 SD101BWS-HE3-08 or SD101BWS-HE3-18 SD101CWS-E3-08 or SD101CWS-E3-18 SD101CWS-HE3-08 or SD101CWS-HE3-18 CIRCUIT CONFIGURATION Single Single Single TYPE MARKING SA SB SC REMARKS Tape and reel ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION PART SYMBOL Repetitive peak reverse voltage Power dissipation (infinite heatsink) (1) Forward continuous current Maximum single cycle surge 10 μs square wave SD101AWS SD101BWS SD101CWS VRRM VRRM VRRM Ptot IF IFSM Note (1) Valid provided that electrodes are kept at ambient temperature THERMAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION SYMBOL Thermal resistance junction to ambient air (1) Junction temperature (1) Rth JA Tj Operating temperature...
