SD101CWS Datasheet (Won-Top Electronics)

Part SD101CWS
Description SURFACE MOUNT SCHOTTKY BARRIER DIODE
Category Diode
Manufacturer Won-Top Electronics
Size 81.81 KB
SD101CWS Datasheet (PDF) Download
Pricing from 0.05341 USD, available from Avnet and Newark.
🏠
Won-Top Electronics

SD101CWS Overview

Key Specifications

Mount Type: Surface Mount
Pins: 2
Height: 1 mm
Length: 1.8 mm

Key Features

  • Low Forward Voltage
  • Fast Switching Speed A
  • PN Junction Guard Ring for Transient and ESD Protection
  • For General Purpose Switching Applications C
  • Plastic Material – UL Recognition Flammability Classification 94V-0 B Mechanical Data

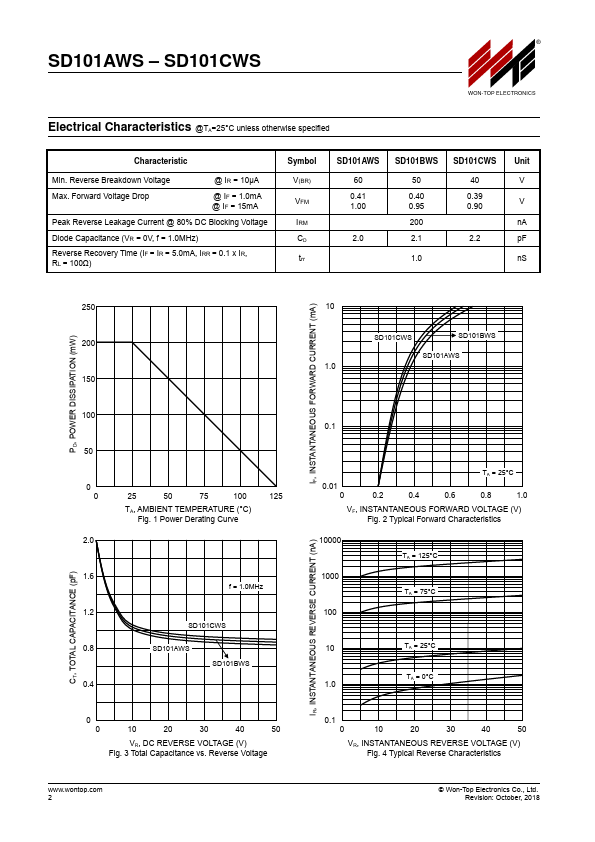

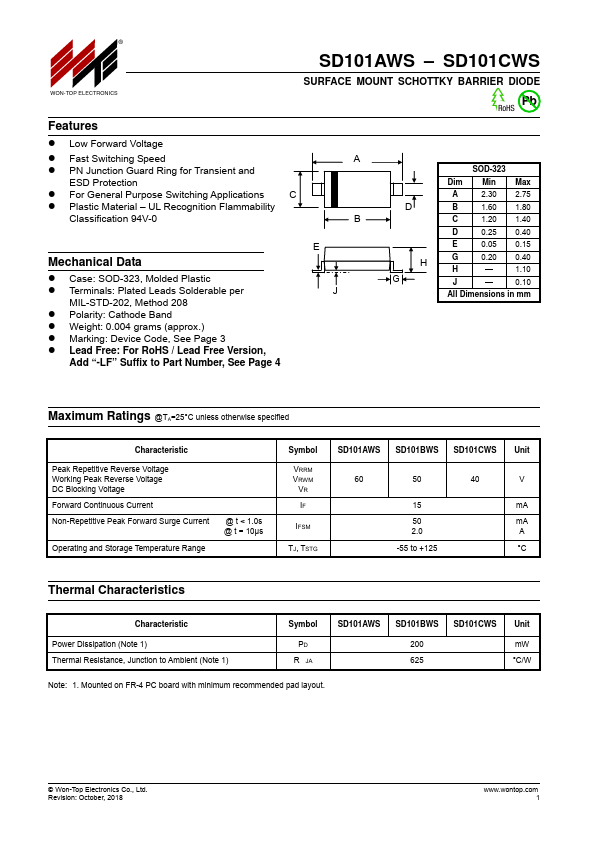

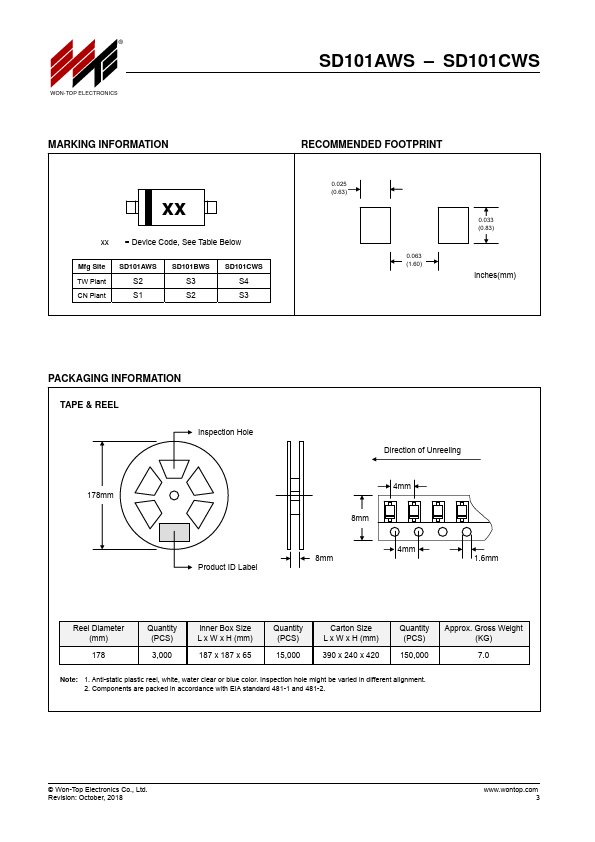

SD101CWS datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Avnet 93000 3000+ : 0.05341 USD
6000+ : 0.05314 USD
12000+ : 0.05287 USD
24000+ : 0.05259 USD		 View Offer
Newark 523 5+ : 0.294 USD
10+ : 0.197 USD
25+ : 0.188 USD
50+ : 0.179 USD		 View Offer

Similar Parts

Part Number Manufacturer Description
SD101CWS PanJit Semiconductor SURFACE MOUNT SCHOTTKY BARRIER
SD101CWS Galaxy Microelectronics Schottky Barrier Diode
SD101CWS SeCoS Halbleitertechnologie GmbH Surface Mount Schottky Barrier Rectifiers
SD101CWS SEMTECH SURFACE MOUNT SCHOTTKY BARRIER DIODE
SD101CWS Micro Commercial Components Small Signal Schottky Diodes

SD101CWS datasheet comparison

🏠
