SD101AWS Datasheet (Won-Top Electronics)

Part SD101AWS
Description SURFACE MOUNT SCHOTTKY BARRIER DIODE
Category Diode
Manufacturer Won-Top Electronics
Size 81.81 KB
SD101AWS Datasheet (PDF) Download
Pricing from 0.04951 USD, available from Avnet and Newark.
🏠
Won-Top Electronics

SD101AWS Overview

Key Specifications

Mount Type: Surface Mount
Pins: 2
Height: 1 mm
Length: 1.8 mm

Key Features

  • Low Forward Voltage
  • Fast Switching Speed A
  • PN Junction Guard Ring for Transient and ESD Protection
  • For General Purpose Switching Applications C
  • Plastic Material – UL Recognition Flammability Classification 94V-0 B Mechanical Data

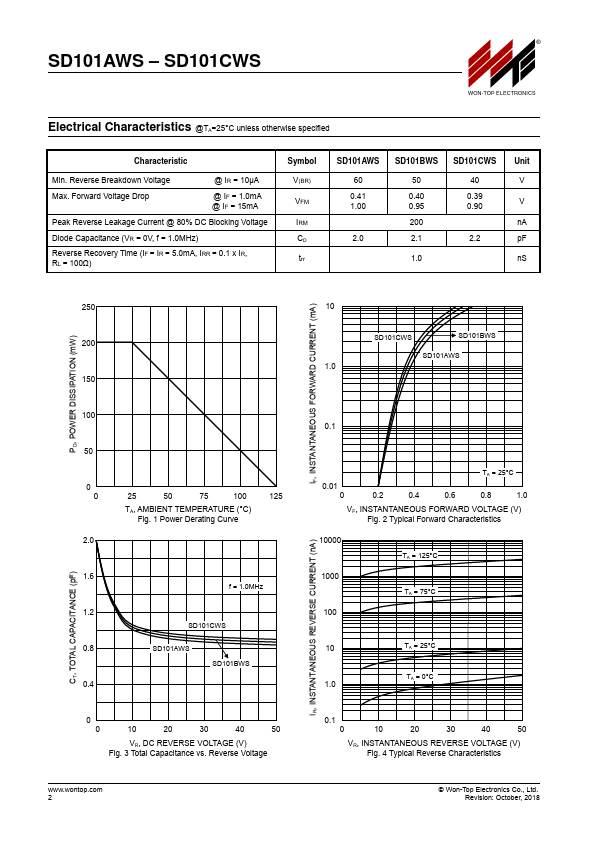

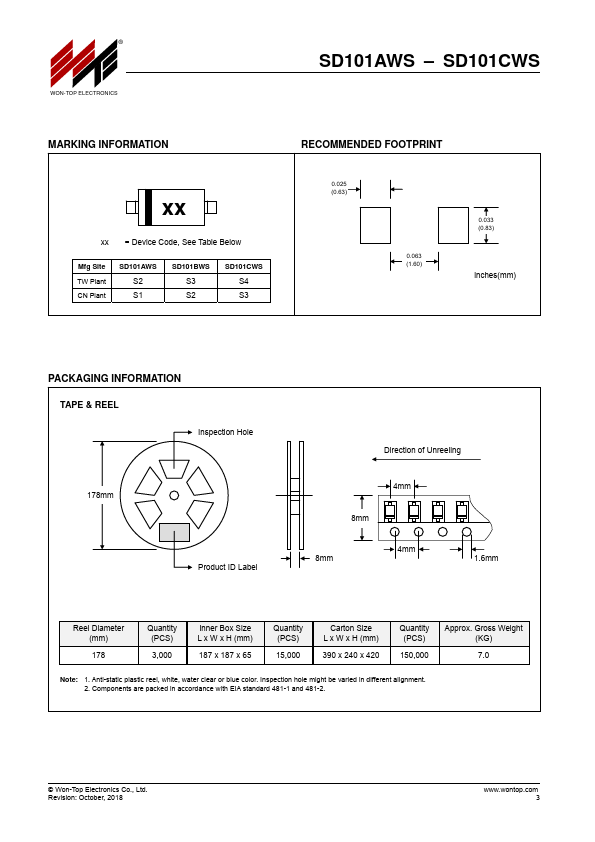

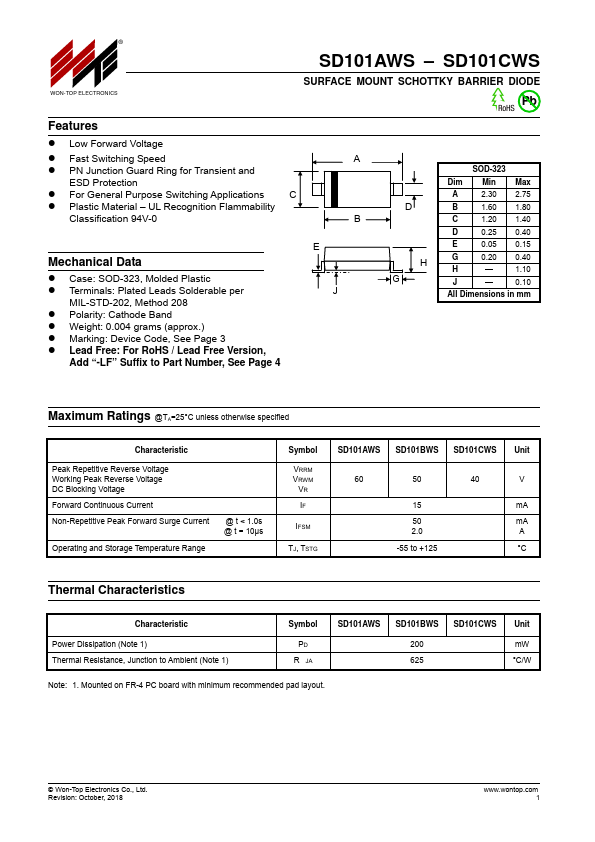

SD101AWS datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Avnet 450000 3000+ : 0.04951 USD
6000+ : 0.04914 USD
12000+ : 0.04837 USD
24000+ : 0.04762 USD		 View Offer
Newark 1609 5+ : 0.347 USD
10+ : 0.24 USD
25+ : 0.227 USD
50+ : 0.214 USD		 View Offer
