SD103BWS - Small Signal Schottky Diodes

Download the SD103BWS datasheet PDF. This datasheet also covers the SD103AWS variant, as both devices belong to the same small signal schottky diodes family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • The SD103 series is a metal-on-silicon Schottky barrier device which is protected by a PN junction guard ring.
  • The low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing, and coupling diodes for fast switching and low logic level.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SD103AWS-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SD103BWS
Manufacturer Vishay
File Size 82.66 KB
Description Small Signal Schottky Diodes
Datasheet download datasheet SD103BWS Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SD103BWS 0.35AMP Surface Mount Schottky Barrier Rectifiers Secos
SD103BWS Surface Mount Schottky Barrier Diodes Weitron
SD103BWS Schottky Barrier Diode GME
SD103BWS SURFACE MOUNT SCHOTTKY BARRIER DIODE WON-TOP
SD103BWS SCHOTTKY DIODES General Semiconductor

Other Datasheets by Vishay

Part Number Description
SD103BWS-G Small Signal Schottky Diodes
SD103BW Small Signal Schottky Diodes
SD103BW-G Small Signal Schottky Diodes
SD103AW Small Signal Schottky Diodes
SD103AW-G Small Signal Schottky Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

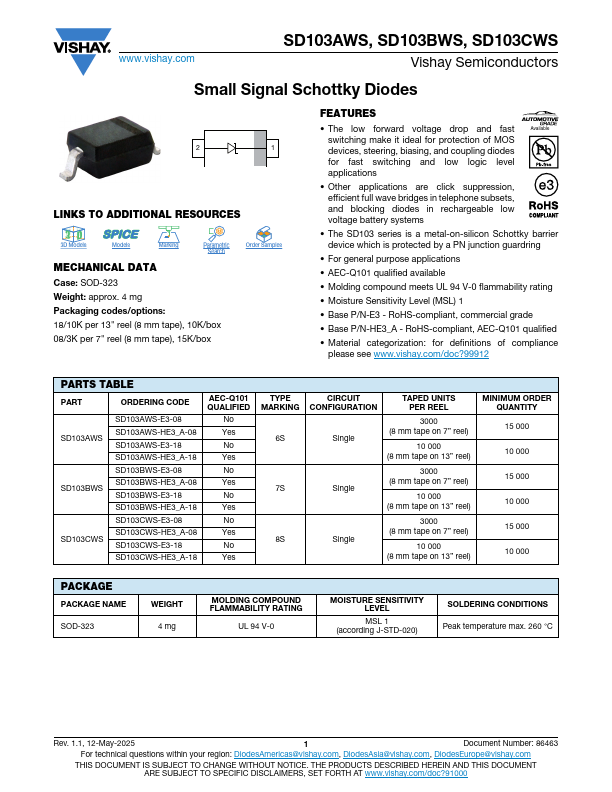

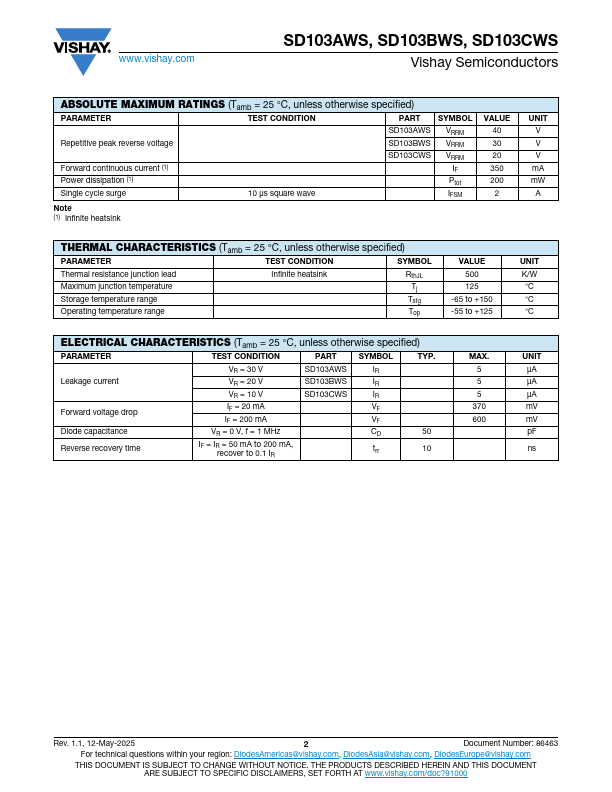

www.vishay.com SD103AWS, SD103BWS, SD103CWS Vishay Semiconductors Small Signal Schottky Diodes MECHANICAL DATA Case: SOD-323 Weight: approx. 4.3 mg Packaging codes/options: 18/10K per 13” reel (8 mm tape), 10K/box 08/3K per 7” reel (8 mm tape), 15K/box FEATURES • The SD103 series is a metal-on-silicon Schottky barrier device which is protected by a PN junction guard ring • The low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing, and coupling diodes for fast switching and low logic level applications • For general purpose applications • AEC-Q101 qualified • Base P/N-E3 - RoHS-compliant, commercial grade • Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified • Material categorization: For definitions of compliance please see www.vishay.
