VS-MBRS190-M3 Datasheet High Performance Schottky Rectifier

Manufacturer: Vishay

VS-MBRS190-M3 high performance schottky rectifier by Vishay - Datasheet Preview

Datasheet Details

Part number	VS-MBRS190-M3
Manufacturer	Vishay
File Size	124.75 KB
Description	High Performance Schottky Rectifier
Download	VS-MBRS190-M3 Download (PDF)

General Description

The VS-MBRS190-M3, VS-MBRS1100-M3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards.

Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTI

Overview

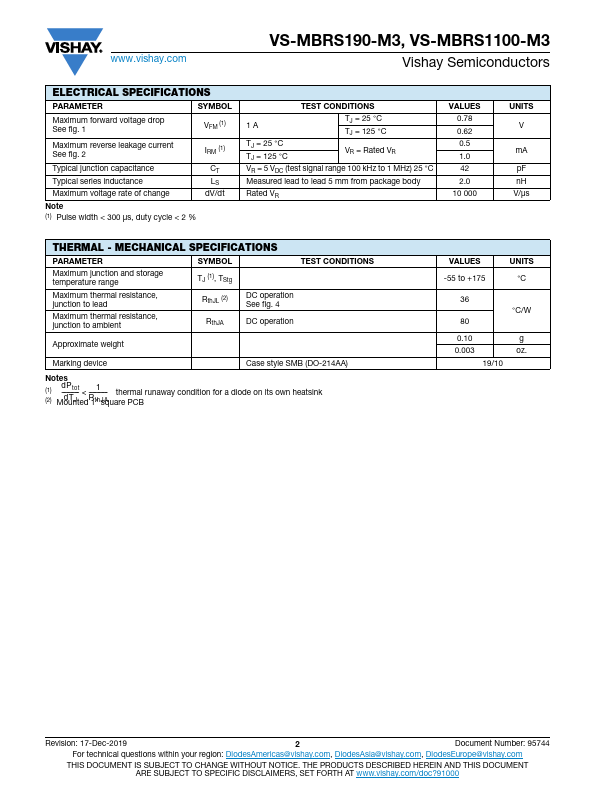

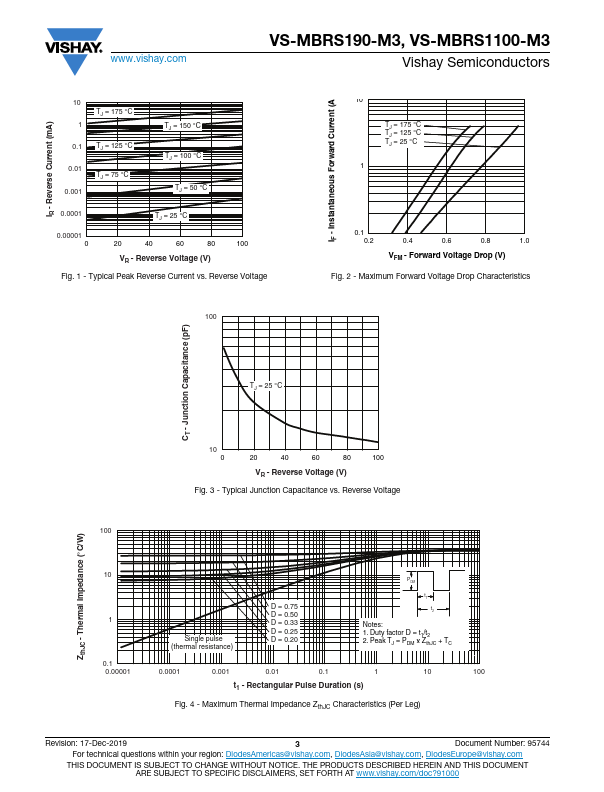

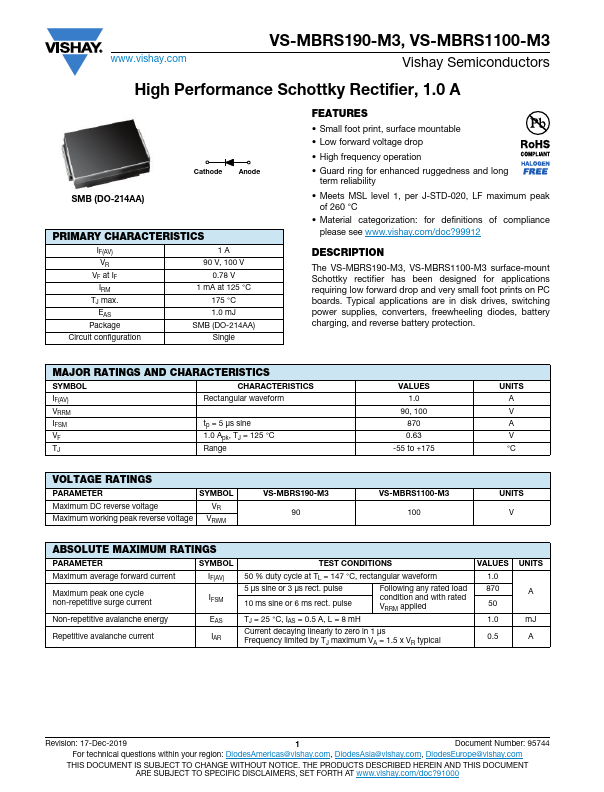

www.vishay.com VS-MBRS190-M3, VS-MBRS1100-M3 Vishay Semiconductors High Performance Schottky Rectifier, 1.0 A SMB PRODUCT SUMMARY Package IF(AV) VR VF at IF IRM TJ max.

Diode variation EAS Cathode Anode SMB 1A 90 V, 100 V 0.78 V 1 mA at 125 °C 175 °C Single die 1.

Key Features

Small foot print, surface mountable.
Low forward voltage drop.
High frequency operation.
Guard ring for enhanced ruggedness and long term reliability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
