WDJ semiconductor HT7590-2
LOW DROPOUT LINEAR REGULATOR
| Part No. | HT7590-2 |
|---|---|
| Datasheet | HT7590-2 Download |
| Manufacturer | WDJ semiconductor |
| Description | LOW DROPOUT LINEAR REGULATOR |
| Buy | Stock & Price |
GENERAL DESCRIPTION
HT75XX-2 series are a set of Low Dropout Linear Regulator ICs implemented inCMOS technology.They can withstand voltage 30V. And they areavailable with lowvoltage drop and low quiescentcurrent, widely used in audio, video and communication appliances.FEATURES
● Low Power Consumption● Low Voltage Drop
● Low Temperature Coefficient
● Withstanding Voltage 30V
● Quiescent Current 1.5μA
● Output Voltage Accuracy: tolerance ±1%
● High output current: 100mA
TYPICAL APPLICATIONS
● Battery-powered Equipments● Communication Equipments

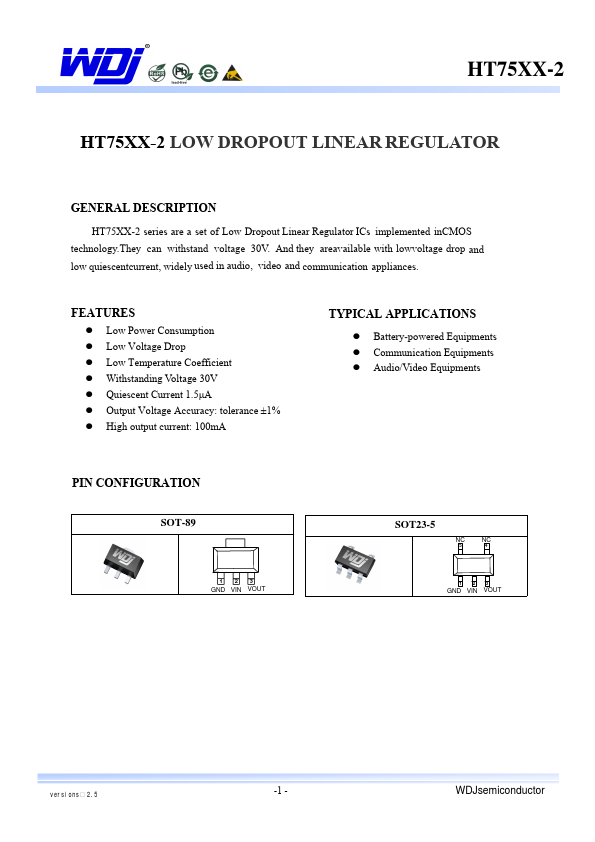

● Audio/Video Equipments PIN CONFIGURATION SOT-89 WDJsemiconductor 1 23 GND VIN VOUT SOT23-5 NC NC 5 4 WDJsemiconductor 1 23 GND VIN VOUT versionsÿ 2.5 -1 - WDJsemiconductor HT75XX-2 OUTPUT Series HT7528-2 HT7530-2 HT7533-2 HT7536-2 HT7540-2 HT7544-2 HT7550-2 HT7590-2 Output 2.8V 3.0V 3.3V 3.6V 4.0V 4.4V 5.0V 9.0V Package SOT-89 SOT23-5 PIN
DESCRIPTION

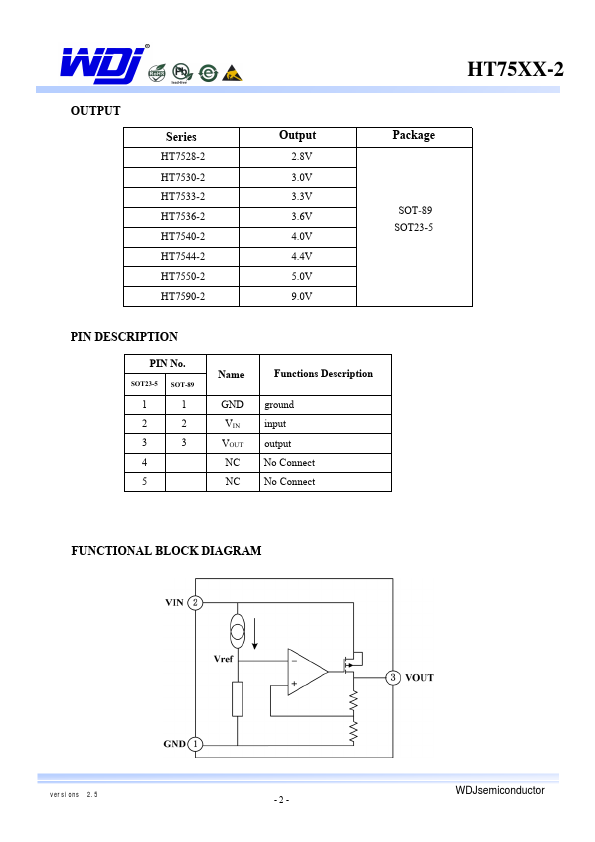

PIN No. SOT23-5 SOT-89 1 1 2 2 3 3 4 5 Name FunctionsDESCRIPTION
GND VIN VOUT NC NC ground...
