This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | MBR160ET1 |
|---|---|
| Datasheet | MBR160ET1 MBR120ET1 Datasheet (PDF) |
| File Size | 1.44 MB |
| Manufacturer | WILLAS |
| Description | 1.0A Schottky Barrier Rectifiers |
|
|

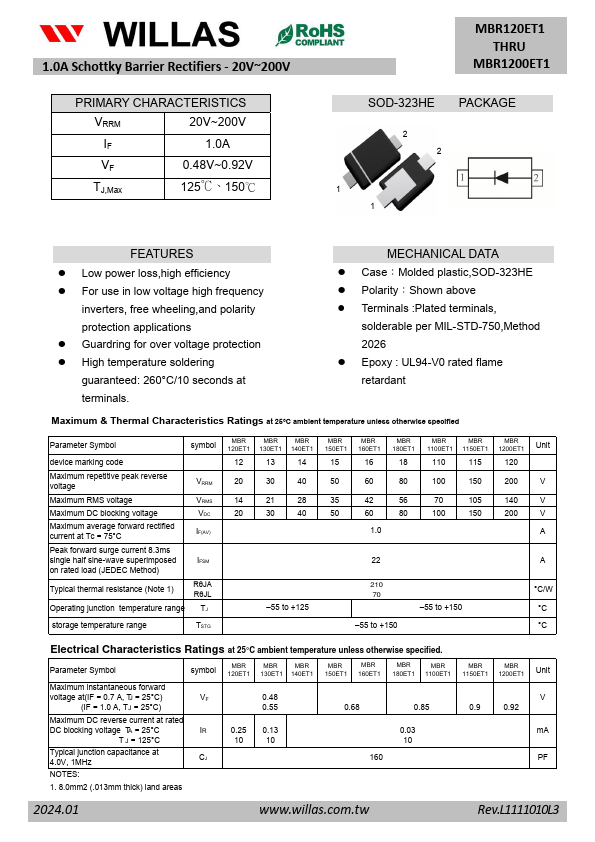

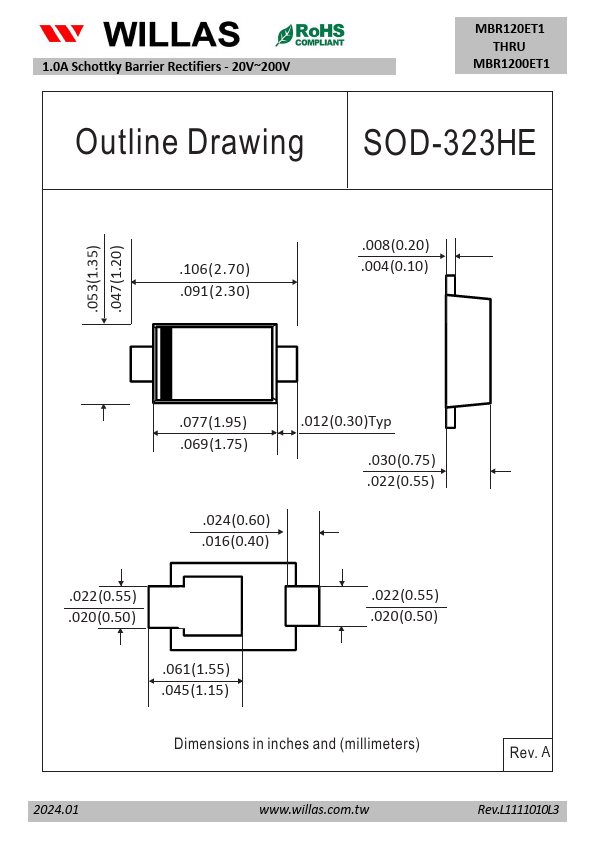

1.0A Schottky Barrier Rectifiers - 20V~200V PRIMARY CHARACTERISTICS VRRM 20V~200V IF 1.0A VF 0.48V~0.92V TJ,Max 125℃、150℃ MBR120ET1 THRU MBR1200ET1 SOD-323HE PACKAGE 2 2.
| Part Number | Description |
|---|---|
| MBR10100CF | 10.0A SCHOTTKY BARRIER RECTIFIERS |
| MBR10150CF | 10.0A SCHOTTKY BARRIER RECTIFIERS |
| MBR10200CF | 10.0A SCHOTTKY BARRIER RECTIFIERS |
| MBR1040CF | 10.0A SCHOTTKY BARRIER RECTIFIERS |
| MBR1045ULPS | 10A 45V Schottky Barrier Rectifier |
| MBR1060CF | 10.0A SCHOTTKY BARRIER RECTIFIERS |
| MBR10U150FCT | Schottky Rectifier |
| MBR10U60CT | 10A Low VF Trench MOS Schottky Rectifiers |
| MBR1100ET1 | 1.0A Schottky Barrier Rectifiers |
| MBR1150ET1 | 1.0A Schottky Barrier Rectifiers |
