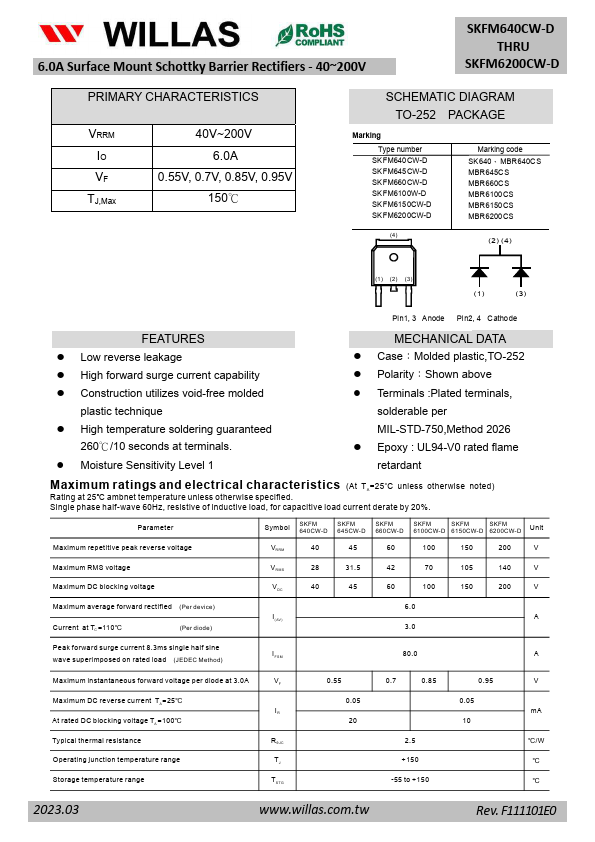

SKFM640CW-D
SKFM640CW-D is 6.0A Surface Mount Schottky Barrier Rectifiers manufactured by WILLAS.
6.0A Surface Mount Schottky Barrier Rectifiers
- 40~200V
SKFM640CW-D THRU
SKFM6200CW-D
PRIMARY CHARACTERISTICS
VRRM IO VF
TJ,Max
40V~200V 6.0A
0.55V, 0.7V, 0.85V, 0.95V 150℃
SCHEMATIC DIAGRAM TO-252 PACKAGE
Marking
Type number SK FM640 CW-D SK FM645 CW-D SK FM660 CW-D SK FM610 0W-D SK FM615 0CW-D SK FM620 0CW-D
Marking code SK 640、 MBR640CS MBR 645C S MBR 660C S MBR6100 CS MBR6150 CS MBR6200 CS
(4) (2) (4)
(1) (2) (3)
(1)
(3)
Pin1, 3 A node Pin2, 4 Catho de
Features
- Low reverse leakage
- High forward surge current capability
- Construction utilizes void-free molded plastic technique
- High temperature soldering guaranteed
260℃/10 seconds at terminals.
- Moisture Sensitivity...
