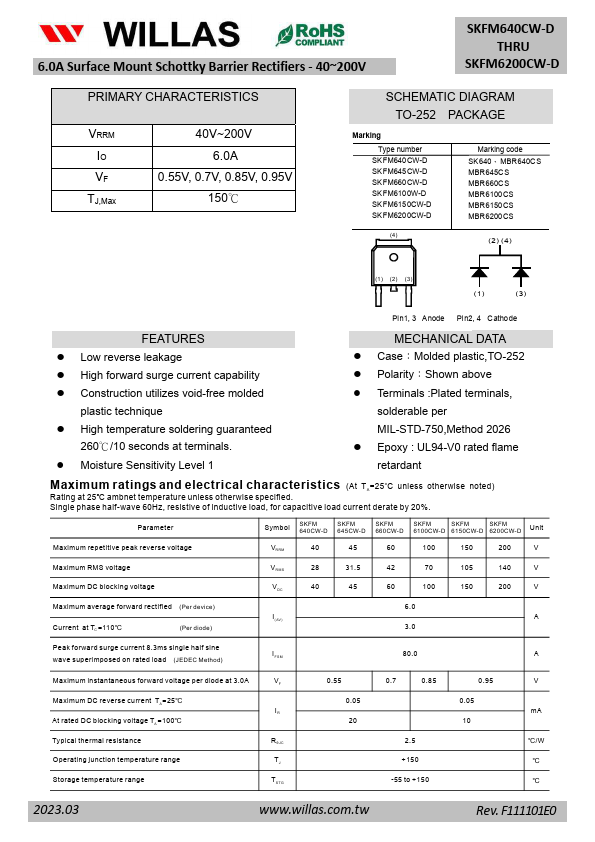

SKFM645CW-D
Overview
- Low reverse leakage
- High forward surge current capability
- Construction utilizes void-free molded plastic technique
- High temperature soldering guaranteed 260℃/10 seconds at terminals.
- Moisture Sensitivity Level 1
| Part | SKFM645CW-D |
|---|---|
| Description | 6.0A Surface Mount Schottky Barrier Rectifiers |
| Manufacturer | WILLAS |
| Size | 1.27 MB |
